2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

Transmission Control Device: Installation

WARNING: This page is about a different variant/trim than selected.

Install the detent spring to the transmission case.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 1: Locating Detent Spring Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the manual plate, parking rod, range select lever and bolt.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

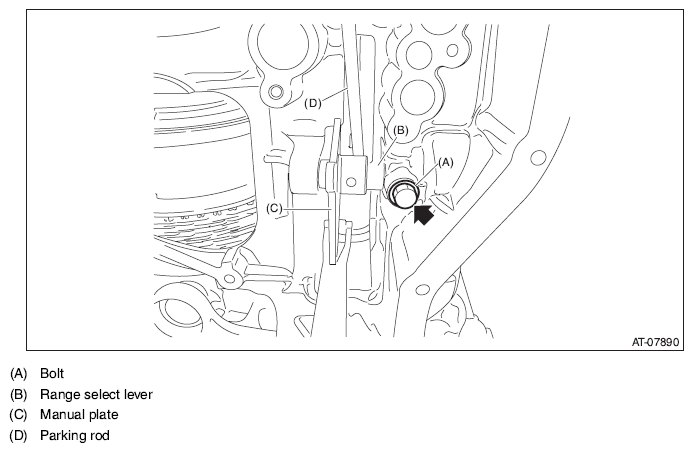

Fig 2: Identifying Range Select Lever, Manual Plate And Parking Rod With Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the spring pin.
NOTE: Use new spring pin.
