2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Front Disc Brake Assembly: Removal
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.
- Prepare a container to catch grease or oil, etc. If any grease or oil spills, wipe it off and clean immediately to prevent from penetrating into floor or flowing outside.
- Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

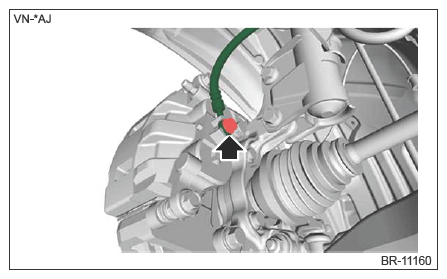

- Remove the bolts and then remove the brake hose front.

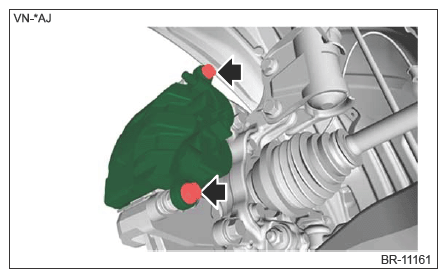

- Remove the bolt, and remove the caliper body.

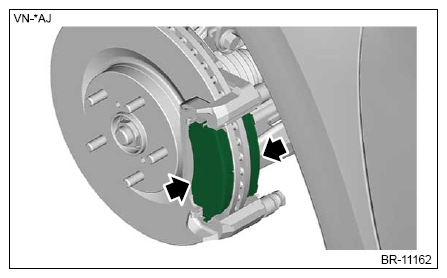

- Remove the pad disc brake front.

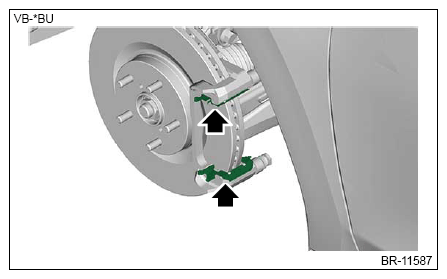

- Remove the pad clip.

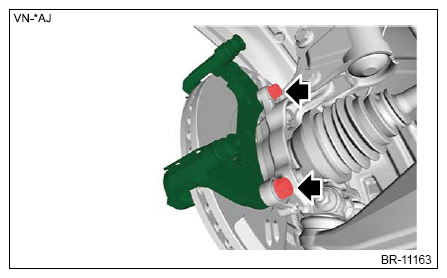

- Remove the mounting bolts, and then remove the support front disc brake.
