Cockpit Display: Disassembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center information display.

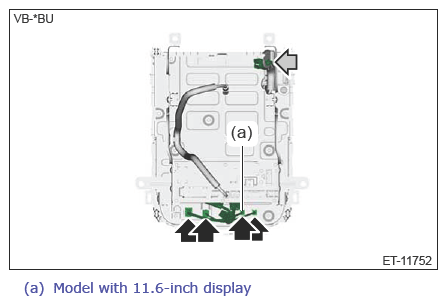

    1. Remove the connector clips, and disconnect each connector.
      G14612493Courtesy of SUBARU OF AMERICA, INC.

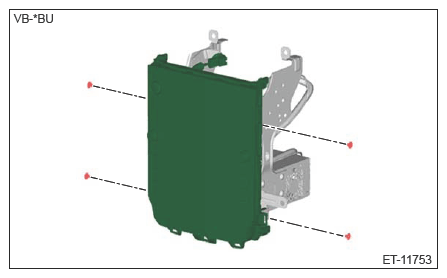

    2. Remove the screws and remove the center information display.
      G14612494Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the switch hazard. Ref. to LIGHTING SYSTEM>HAZARD SWITCH>REMOVAL

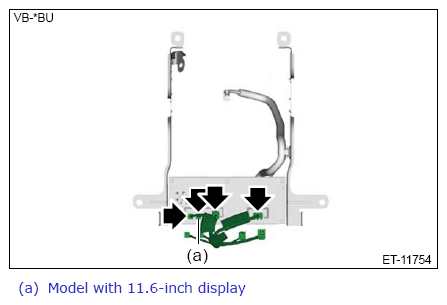

  3. Disconnect the connectors, and remove the cord assembly CCM.
    G14612495Courtesy of SUBARU OF AMERICA, INC.

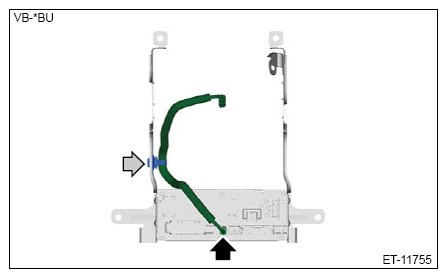

  4. Remove the connector and cable clip and remove the cable CCM.
    G14612496Courtesy of SUBARU OF AMERICA, INC.

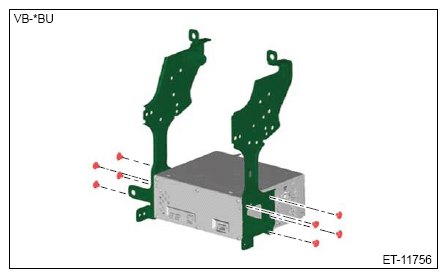

  5. Remove the screws and remove the unit bracket from the cockpit control module.
    G14612497Courtesy of SUBARU OF AMERICA, INC.
