2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Wastegate Control Solenoid Valve: Removal
- Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
- Remove the intake duct No. 2. < Ref. to INTAKE DUCT NO. 2 , REMOVAL, Intake Duct. >

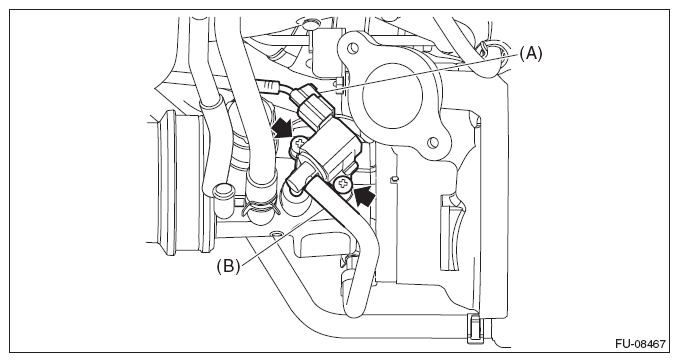

- Disconnect the connector (A) and vacuum hose (B) from the wastegate control solenoid valve.
- Remove the wastegate control solenoid valve from the intake duct No. 1.
