2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

Tumble Generator Valve Assembly: Removal

NOTE: The tumble generator valve assembly is tightened together with the intake manifold.
  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
  2. Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
  3. Remove the air intake adapter from the cylinder head.
    • RH side

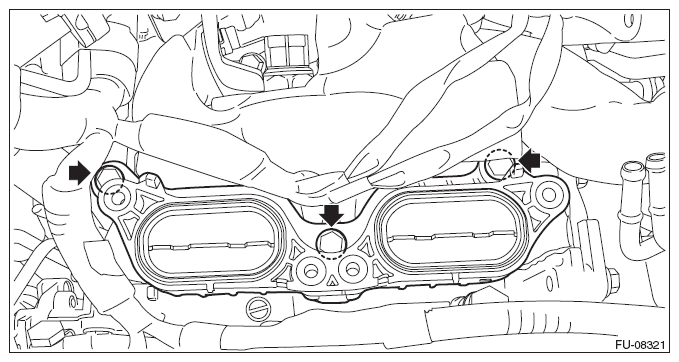

      Fig 1: Locating Tumble Generator Valve Assembly Bolts (RH Side)
      G10266121Courtesy of SUBARU OF AMERICA, INC.
    • LH side

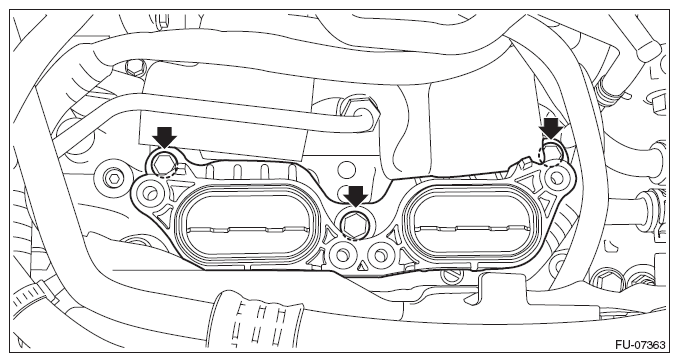

      Fig 2: Locating Tumble Generator Valve Assembly Bolts (LH Side)
      G09479645Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the cylinder head plate from cylinder head.

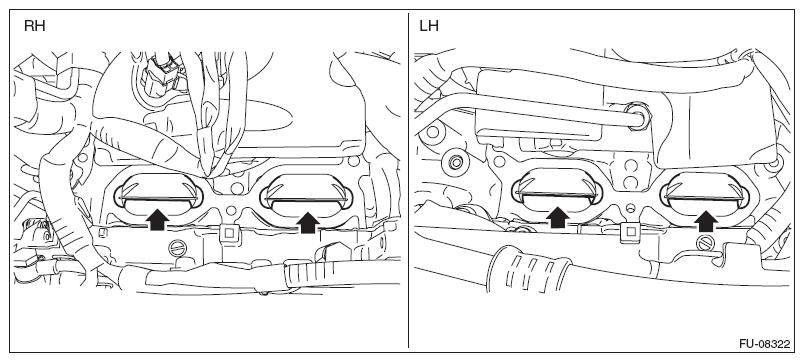

    Fig 3: Locating Cylinder Head Plate
    G10266123Courtesy of SUBARU OF AMERICA, INC.
