2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Throttle Body: Removal
- Remove the collector cover. < Ref. to REMOVAL , Collector Cover. >
- Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
- Lift up the vehicle.
- Remove the under cover. < Ref. to REMOVAL , Front Under Cover. >
- Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. < Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
- Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
- Remove the intake duct No. 3. < Ref. to INTAKE DUCT NO. 3 , REMOVAL, Intake Duct. >
- Disconnect the connector (A) from the throttle position sensor, and disconnect the preheater hose (B) from the throttle body.

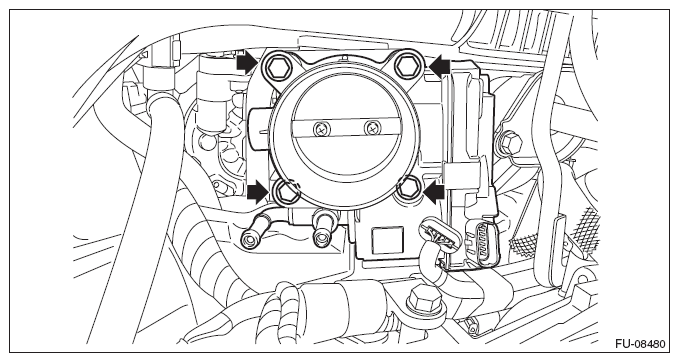

- Remove the throttle body from the intake manifold.
