Rear Oxygen Sensor: Installation
- Before installing rear oxygen sensor, apply the anti-seize compound only to the threaded portion of rear oxygen sensor to make the next removal easier.CAUTION: Never apply anti-seize compound to the protector of rear oxygen sensor.
Anti-seize compound:
NEVER-SEEZ NSN, JET LUBE SS-30 or equivalent

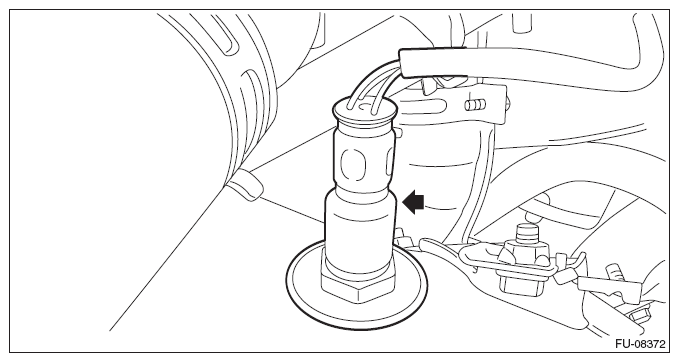

- Install the rear oxygen sensor.
Tightening torque:
30 N.m (3.1 kgf-m, 22.1 ft-lb)

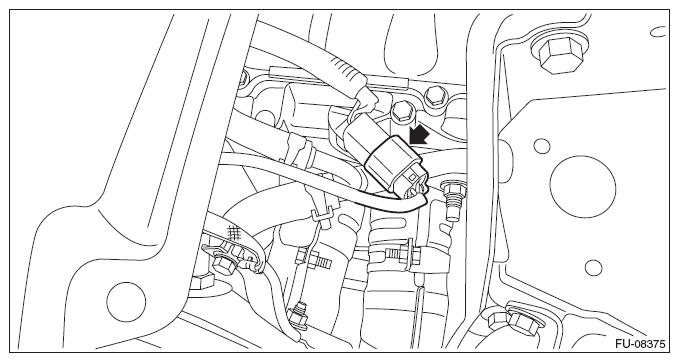

- Connect the rear oxygen sensor connector to the engine harness.
- Install the under cover. < Ref. to INSTALLATION , Front Under Cover. >
- Lower the vehicle.
- Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Notes. >
