Intake Manifold: Installation

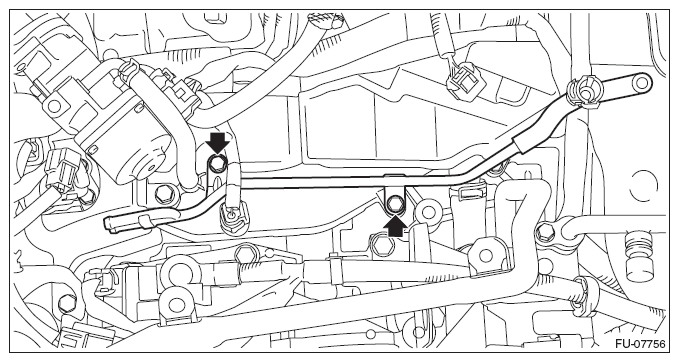

- Install the vacuum hose assembly to the water pipe assembly.
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

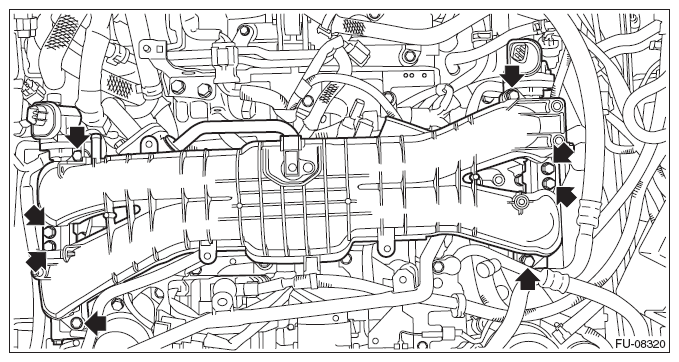

- Install the intake manifold and tumble generator valve assembly to the air intake adapter.NOTE: Use a new gasket.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Connect the fuel delivery pipe (A) and vacuum hose (B) to the fuel pipe assembly.CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, make sure to insert it all the way in before locking the slider.
- When it is difficult to lock the slider, check that the connector is fully inserted.
- After locking the slider, check again that the quick connector is securely connected.
