2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Engine Wiring Harness: Removal
- Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
- Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
- Remove the fuel insulator. < Ref. to REMOVAL , Fuel Insulator. >
- Remove the engine control module (ECM). < Ref. to REMOVAL , Engine Control Module (ECM). >
- Disconnect the connector from the engine.

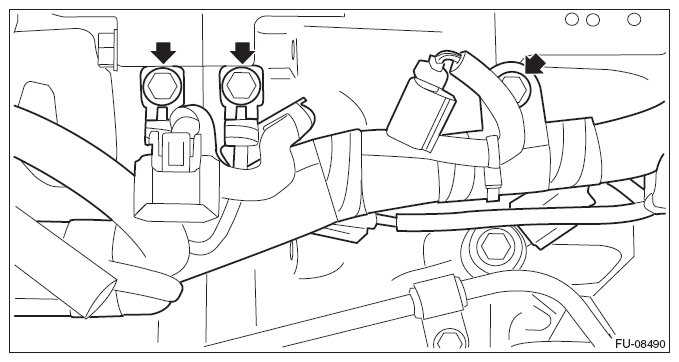

- Structural diagram 1

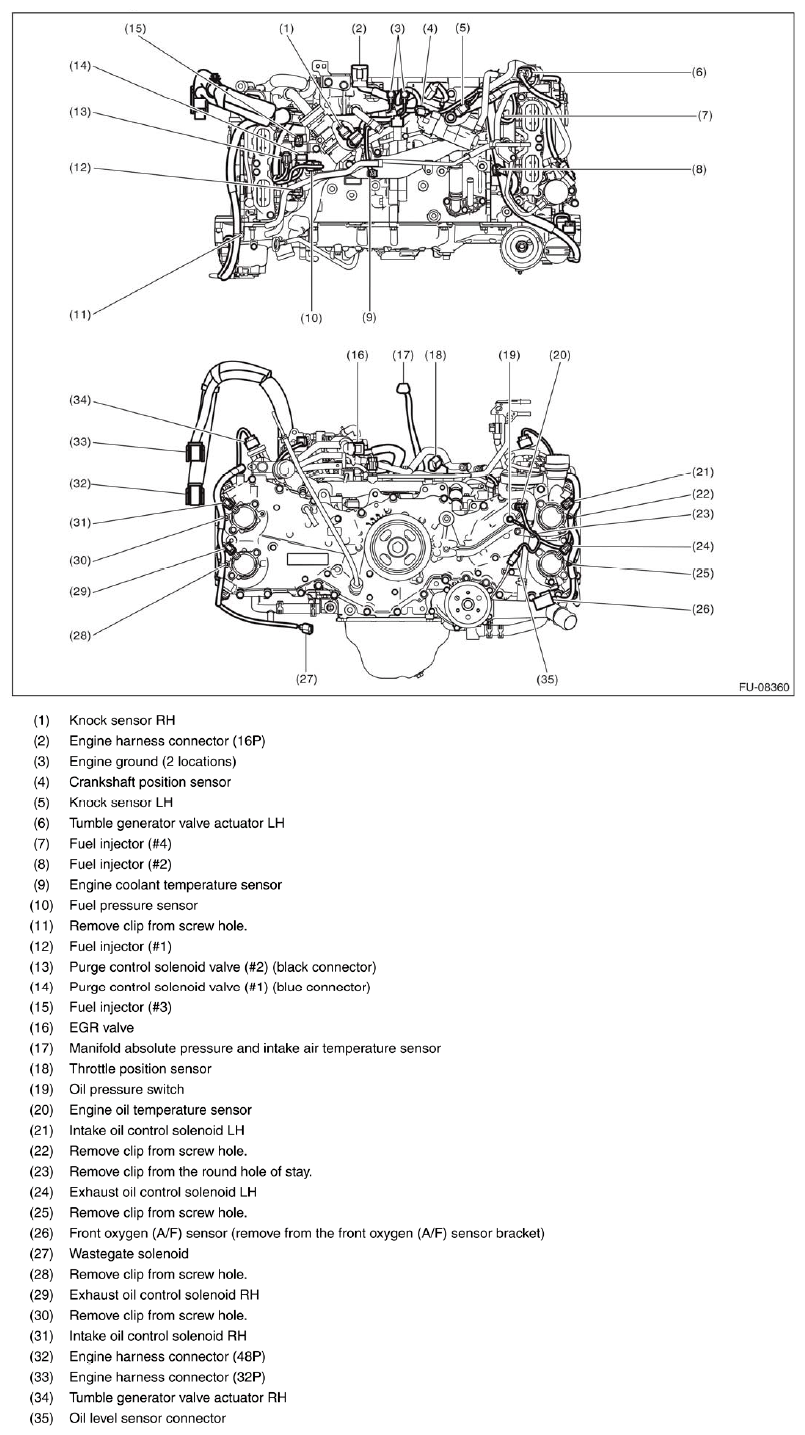

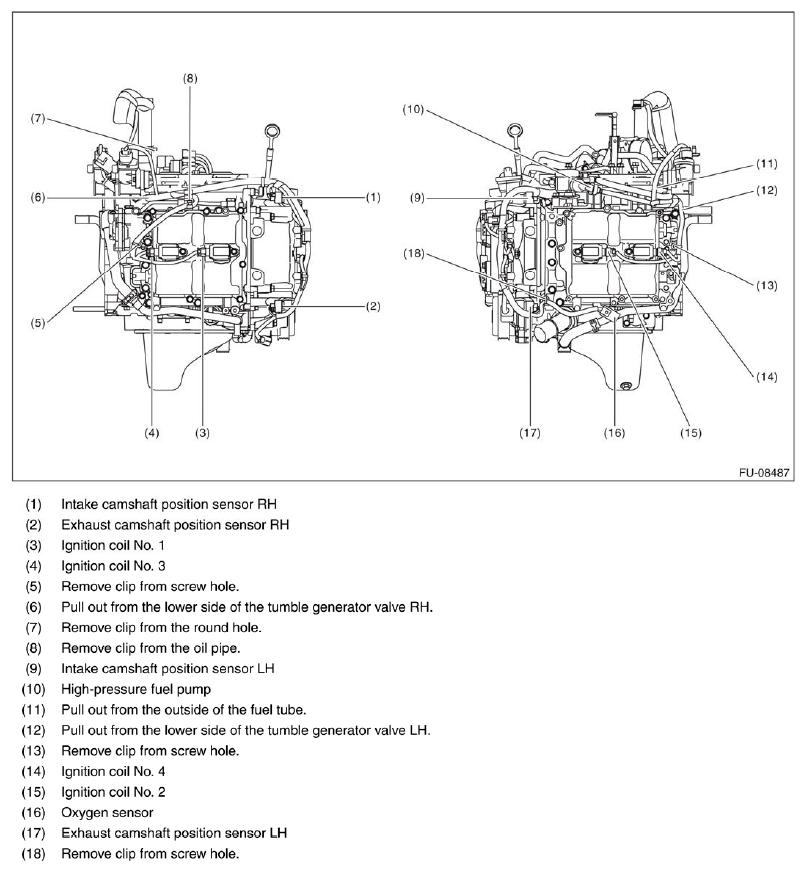

- Structural diagram 2
- Remove the engine wiring harness.
