2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Engine Control Module (ECM): Removal
- Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >

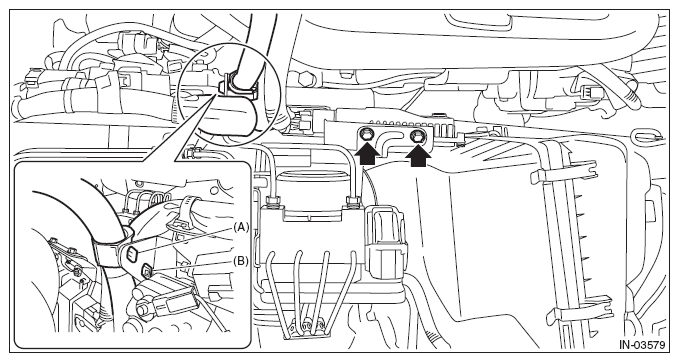

- Remove the clip (A) and clip (B) which secure the engine harness and bulkhead harness from the bracket, and remove the bolt which secures the ECM to the bracket.
- Pull out the ECM from the bracket.NOTE: When performing the pulling out operation, pay attention not to apply excessive load to the breather filter portion (a) in order to avoid the damage.
