2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Electronic Throttle Control Relay: Removal
- Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
- Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
- Remove the nut and bolt, and move the fuse block downwards.

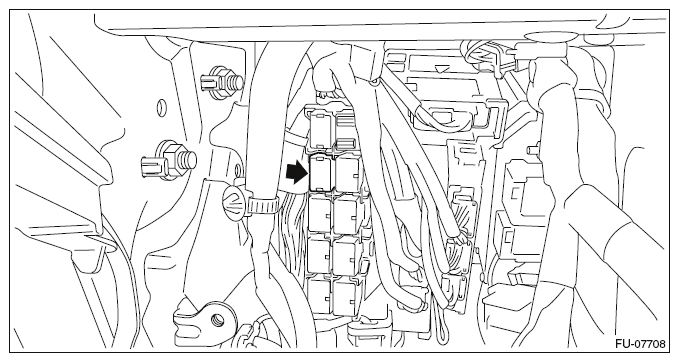

- Remove the electronic throttle control relay from the relay block.
