2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor: Removal
- Remove the collector cover. < Ref. to REMOVAL , Collector Covers
- Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Notes
- Remove the intercooler. < Ref. to REMOVAL , Intercoolers
- Remove the throttle body. < Ref. to REMOVAL , Throttle Body. >

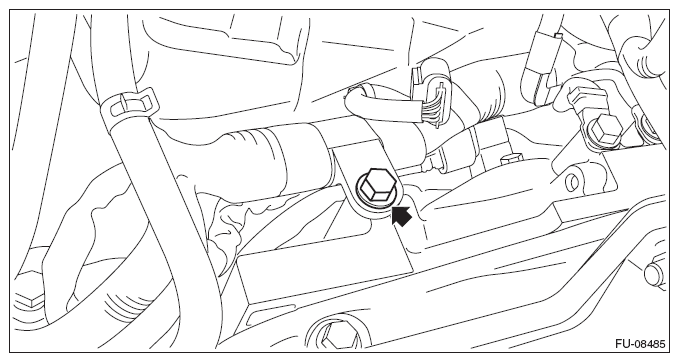

- Remove the bolts securing the engine harness.

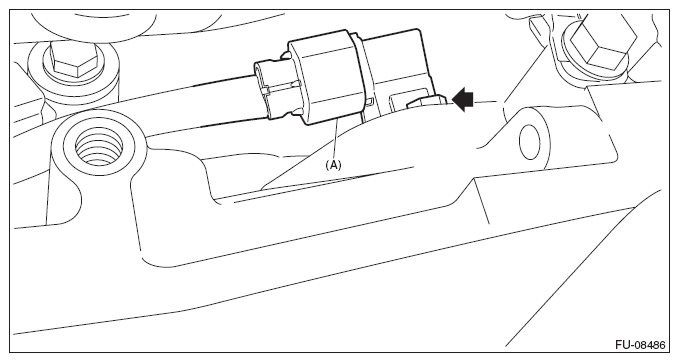

- Disconnect the connector (A) from the crankshaft position sensor, and remove the crankshaft position sensor from the cylinder block.
