2016 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Multi-Function Display Switch
- Measure the resistance between connector terminals.
Preparation tool:Β
Circuit testerΒ
Courtesy of SUBARU OF AMERICA, INC.

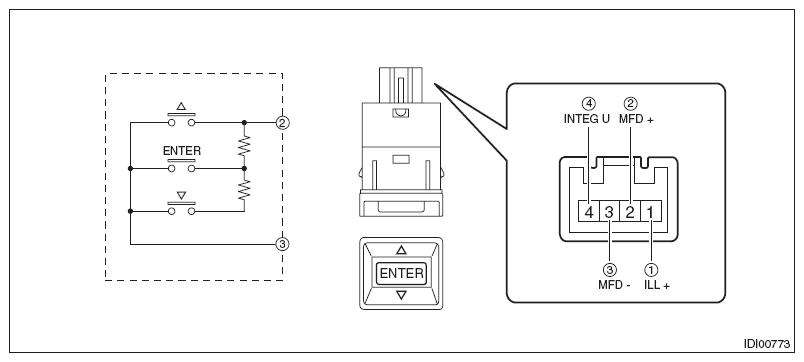

Terminal No. Inspection conditions Standard 2 - 3 (UP)
ENTER
(DOWN)All OFF Approx. 1 MΞ© or more (UP) ON Less than 1 Ξ© ENTER ON Approx. 1, 000 Ξ© (DOWN) ON Approx. 3, 670 Ξ© - Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.
Terminal No. Inspection conditions Specification 4 (+) - 1 (-) Apply battery voltage. Light ON - If the inspection result is not within the standard, replace the switch - multi-function display.
