2016 Subaru Outback 2.5iFACTORY OEM SERVICE PROCEDURE
Rear Oxygen Sensor: Removal
- Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
- Lift up the vehicle.
- Remove the under cover. < Ref. to REMOVAL , Front Under Cover. >

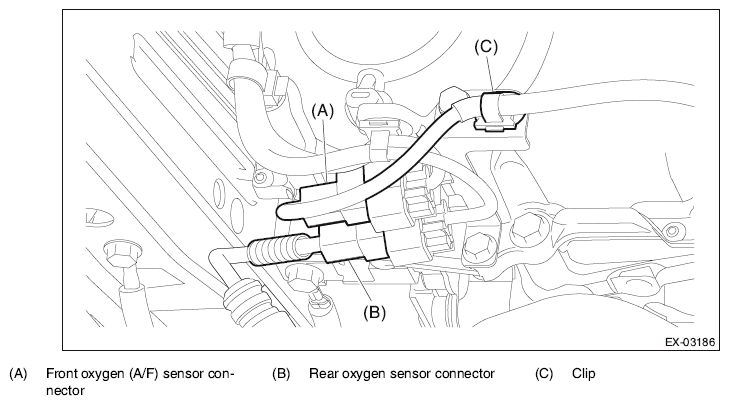

- Disconnect the rear oxygen sensor connector.
- Remove the front mud guard RH. < Ref. to REMOVAL , Mud Guard. >
- Apply spray-type lubricant (004301003) or equivalent to the threaded portion of rear oxygen sensor, and leave it for one minute or more.
- Remove the rear oxygen sensor.CAUTION: When removing the rear oxygen sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.
