2016 Subaru Legacy 2.5iFACTORY OEM SERVICE PROCEDURE
Throttle Body: Removal
- Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
- Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. < Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >

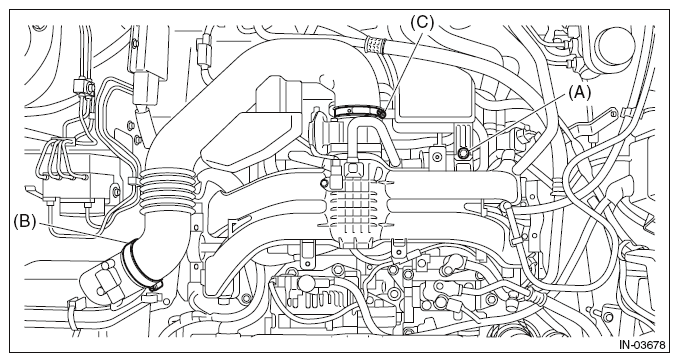

- Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

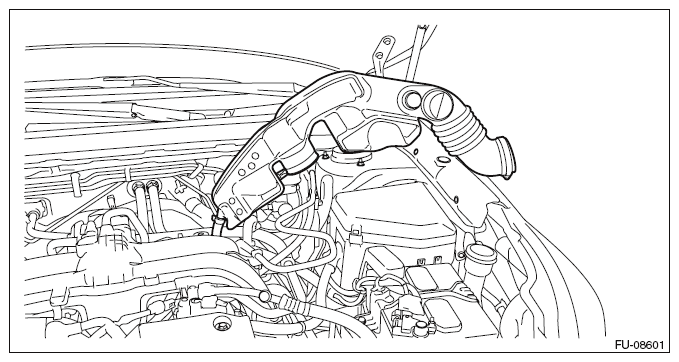

- Remove the air intake boot from the air cleaner case (rear) and throttle body, and move it to the left side wheel apron.

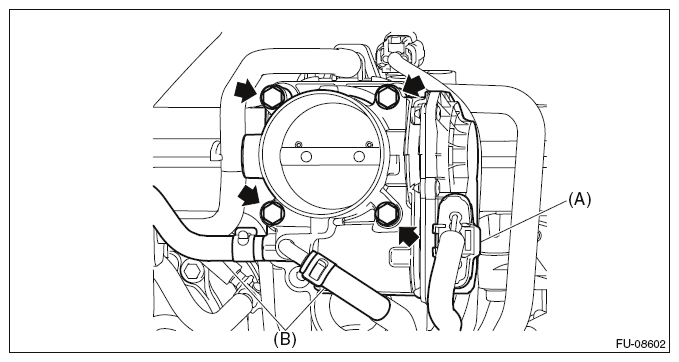

- Disconnect the connectors (A) from the throttle position sensor.
- Disconnect the preheater hose (B) from the throttle body.
- Remove the throttle body from the intake manifold assembly.
