2016 Subaru Legacy 2.5iFACTORY OEM SERVICE PROCEDURE
Main Relay: Inspection
- Check that the main relay has no deformation, cracks or other damages.

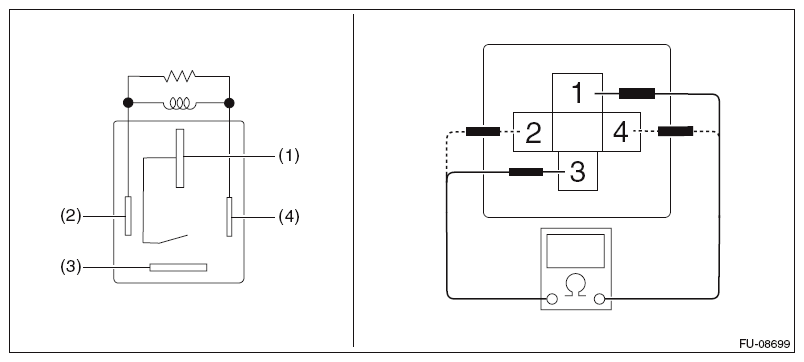

- Measure the resistance between main relay terminals.

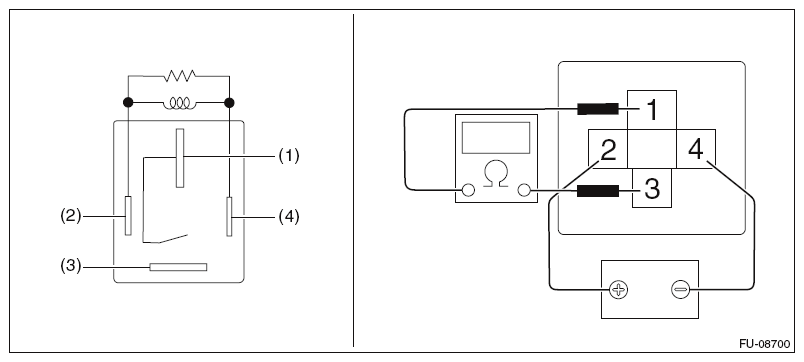

Terminal No. Standard 1 and 3 1 MΞ© or more 2 and 4 80.55 - 98.45 Ξ© (when 20Β°C (68Β°F)) - Connect battery positive terminal to terminal No. 2 and battery ground terminal to terminal No. 4, and measure the resistance between the main relay terminals.
Terminal No. Standard 1 and 3 Less than 1 Ξ©
