Fuel Line

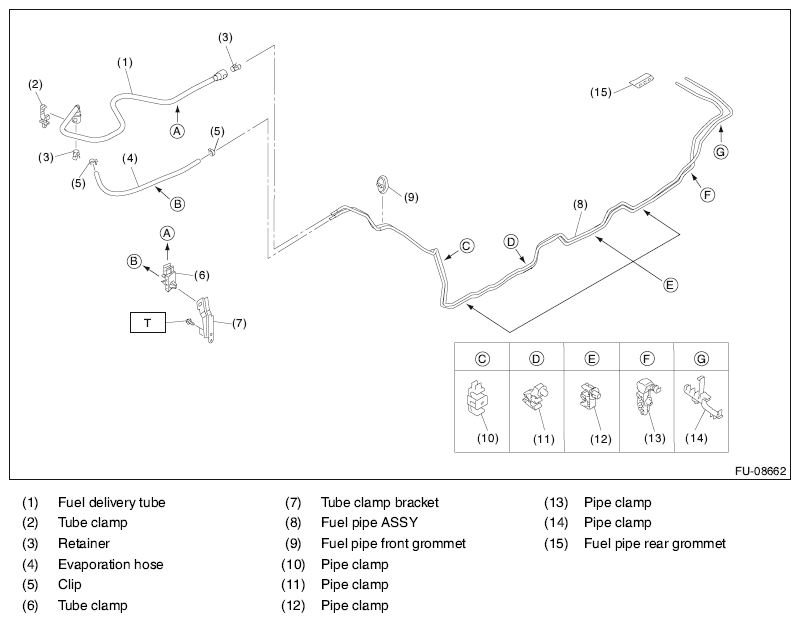

- Fuel line 1
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)

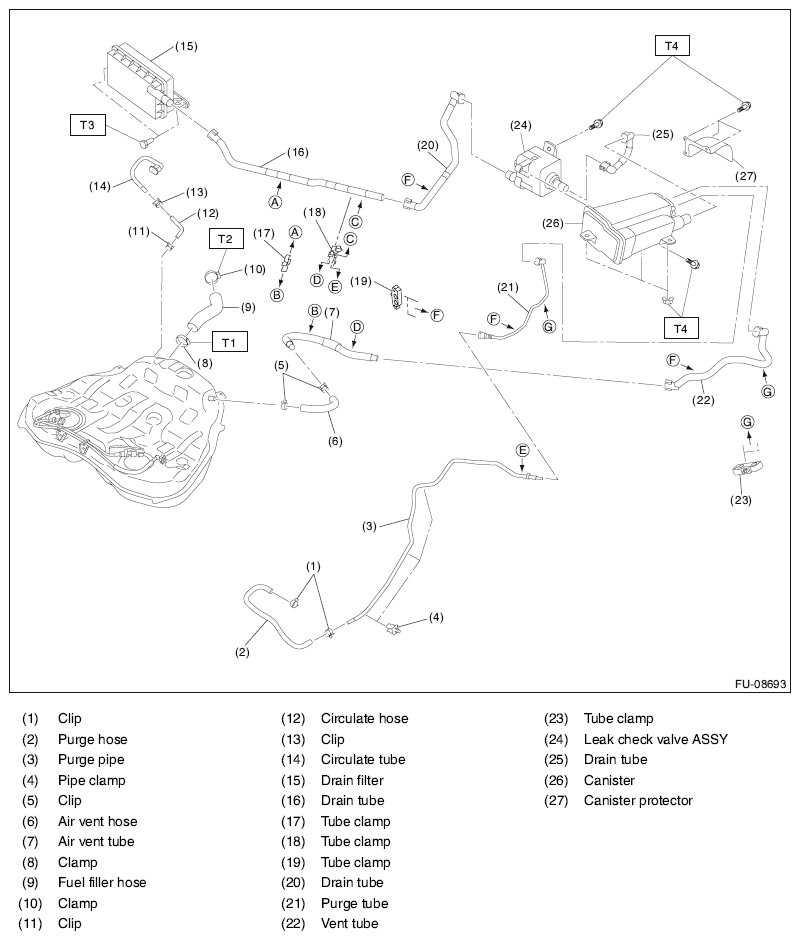

- Fuel line 2
Tightening torque: N.m (kgf-m, ft-lb)
T1: 2 (0.2, 1.5)
T2: 2.5 (0.3, 1.8)
T3: 7.5 (0.8, 5.5)
T4: 8 (0.8, 5.9)
