2016 Subaru Legacy 2.5iFACTORY OEM SERVICE PROCEDURE

Fuel Tank Protector: Installation

Install the fuel tank protector.
NOTE: Use a new self-locking nut (a).

Tightening torque:

T1: 9 N.m (0.9 kgf-m, 6.6 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

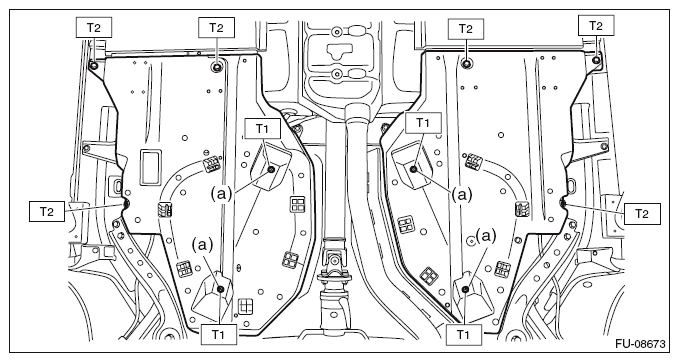

Fig 1: Identifying Fuel Tank Protector Self-Locking Nut
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
