2016 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE
Engine Control Module (ECM): Removal
- Disconnect the ground cable from battery.

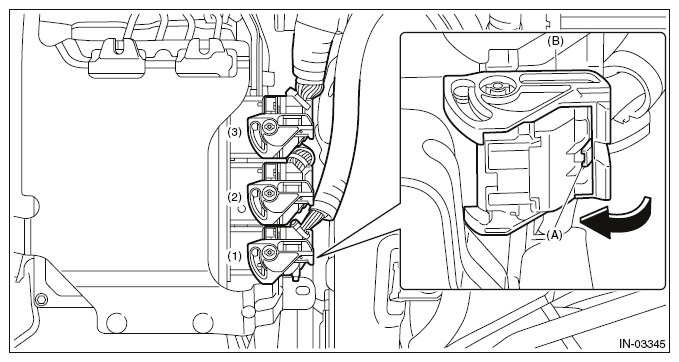

- While pressing the section (A) shown in the figure, move the lock lever (B) in the direction of the arrow to disconnect the connectors from the ECM in numerical order as shown in the figure.

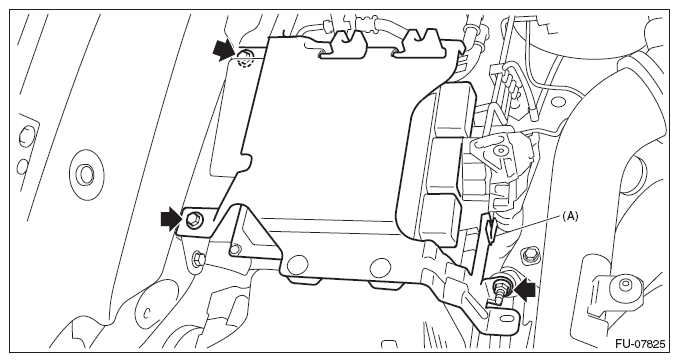

- Remove the bolt, nut, and clip (A), and remove the ECM.

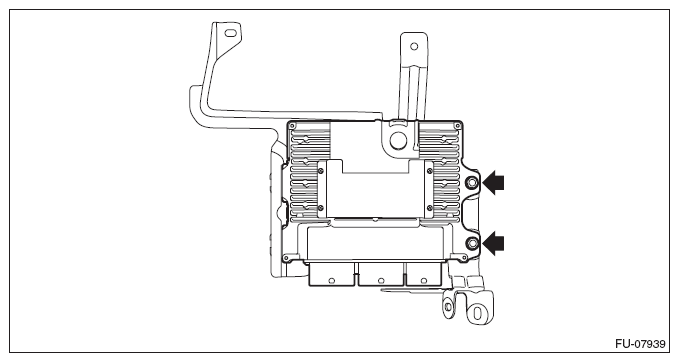

- Remove the ECM from the bracket.

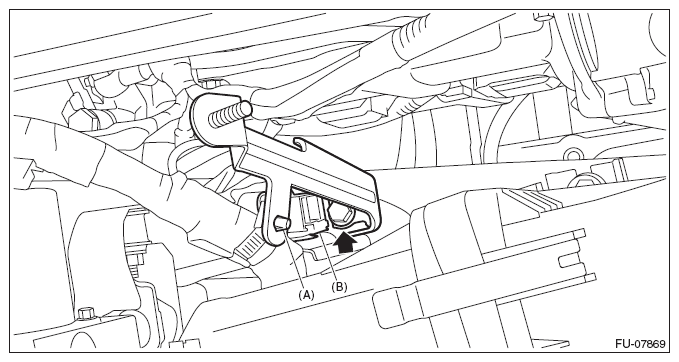

- Remove clip (A) and connector (B), and remove the ECM bracket.
