Select Lever: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. < Ref. to REMOVAL , Center Exhaust Pipe. >
  5. Remove the center exhaust cover.
    Fig 1: Identifying Center Exhaust Cover
    G08550562Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the cable from the arm COMPL.

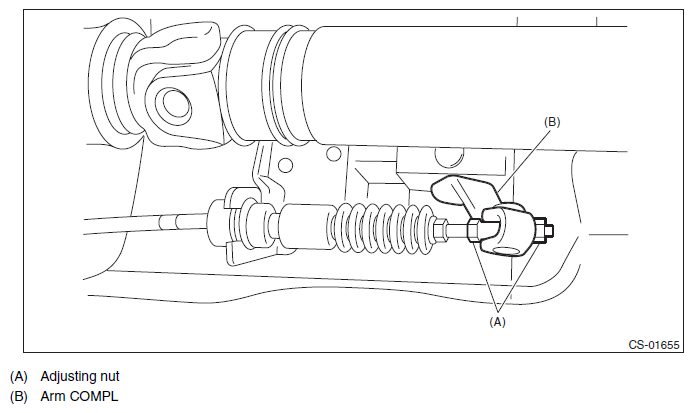

    Fig 2: Identifying Adjusting Nut And Arm COMPL
    G10319265Courtesy of SUBARU OF AMERICA, INC.
  7. Raise the claw of clamp and remove the cable.

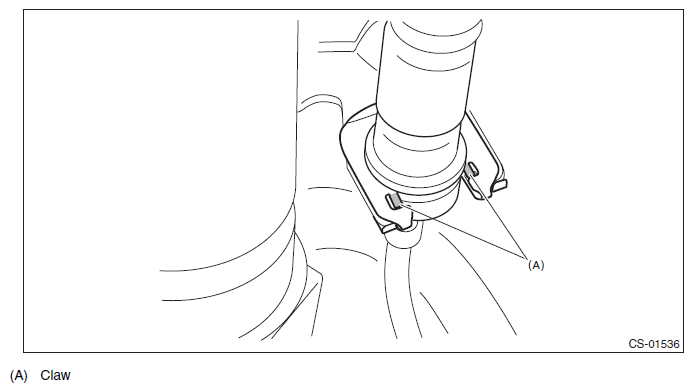

    Fig 3: Identifying Select Lever Claw And Clamp
    G10319266Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Shift the select lever to "N" range.
  10. Lower the boot assembly vertically toward the lever. (Model with boot shifter)
    Fig 4: Pressing Boot Assembly Vertically
    G10267805Courtesy of SUBARU OF AMERICA, INC.
  11. Lower the cover grip AT vertically toward the lever. (Model with gate shifter)

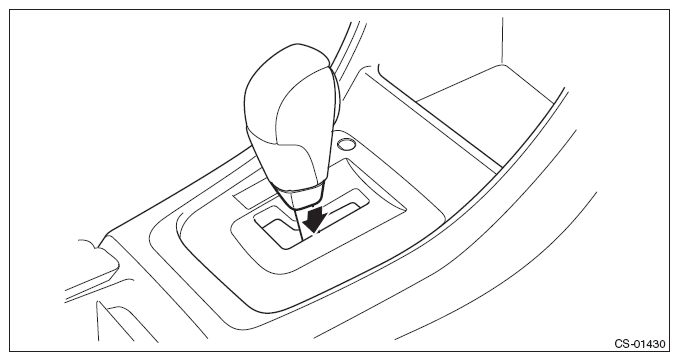

    Fig 5: Pressing Cover Grip AT Vertically
    G08317526Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the clamp grip pin.
    • Model with boot shifter
      Fig 6: Removing Clamp Grip Pin - Model With Boot Shifter
      G10267806Courtesy of SUBARU OF AMERICA, INC.
    • Model with gate shifter

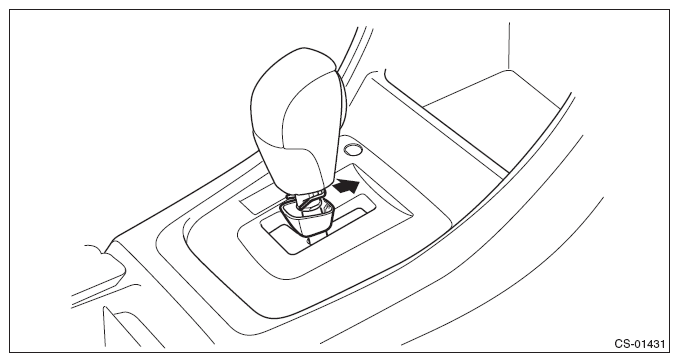

      Fig 7: Removing Clamp Grip Pin - Model With Gate Shifter
      G08317527Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the grip assembly.
    • Model with boot shifter
      Fig 8: Removing Grip Assembly - Model With Boot Shifter
      G10267807Courtesy of SUBARU OF AMERICA, INC.
    • Model with gate shifter

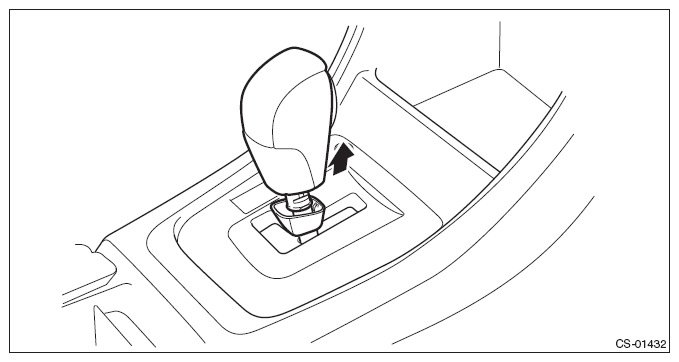

      Fig 9: Removing Grip Assembly - Model With Gate Shifter
      G08317528Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the console box. < Ref. to REMOVAL , Console Box. >
  15. Remove the cover - shift lever. < Ref. to REMOVAL , Console Box. >
  16. Disconnect the connector, and remove the indicator cover from the housing. (Model with gate shifter)

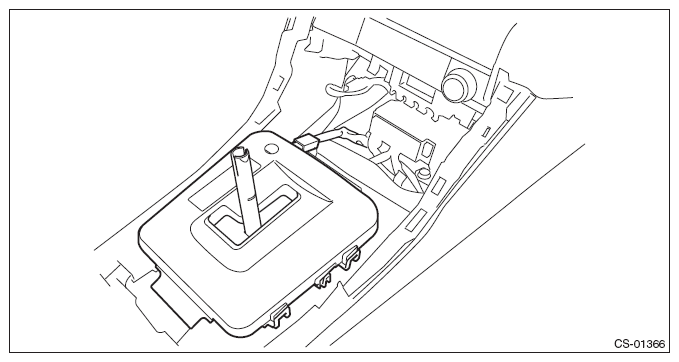

    Fig 10: Identifying Indicator Cover And Housing
    G08317530Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the housing with the blind A and blind B. (Model with gate shifter)

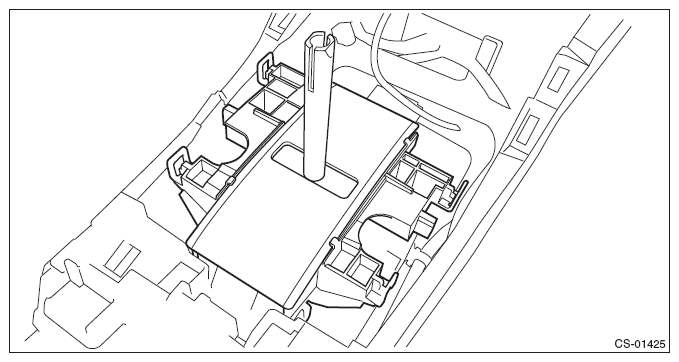

    Fig 11: Identifying Housing Blind A And B (Model With Gate Shifter)
    G08317531Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the blind B. (Model with gate shifter)

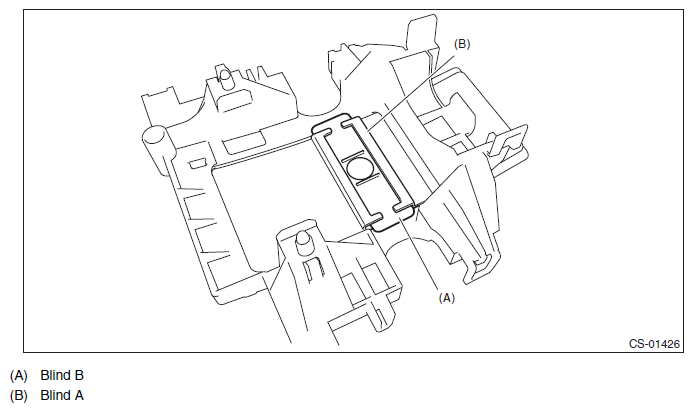

    Fig 12: Identifying Blind B (Model With Gate Shifter)
    G10319275Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the blind A from the housing. (Model with gate shifter)

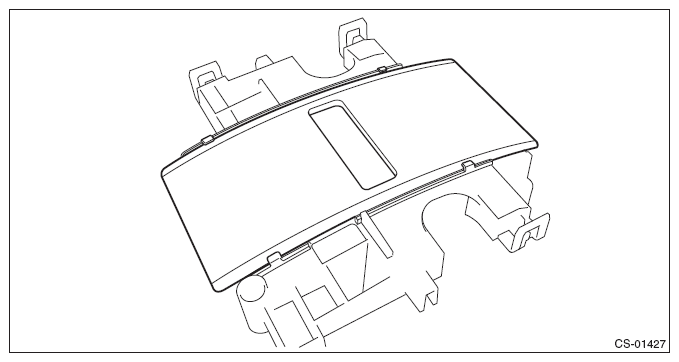

    Fig 13: Identifying Blind A (Model With Gate Shifter)
    G08317533Courtesy of SUBARU OF AMERICA, INC.
  20. Remove the panel center LWR LH and RH. < Ref. to REMOVAL , Console Box. >
  21. Disconnect the connector, and remove the indicator assembly. (Model with boot shifter)
    Fig 14: Identifying Indicator Assembly
    G10267808Courtesy of SUBARU OF AMERICA, INC.
  22. Remove the harness clip from the select lever assembly.
    Fig 15: Locating Select Lever Assembly Harness Clip
    G08550573Courtesy of SUBARU OF AMERICA, INC.
  23. Disconnect the harness connector.
    Fig 16: Identifying Harness Connector
    G08550574Courtesy of SUBARU OF AMERICA, INC.
  24. Remove the four bolts to remove the select lever assembly.
    Fig 17: Locating Select Lever Assembly Bolts
    G08550575Courtesy of SUBARU OF AMERICA, INC.
