Select Lever: Installation
- Set the select lever assembly to the vehicle body.

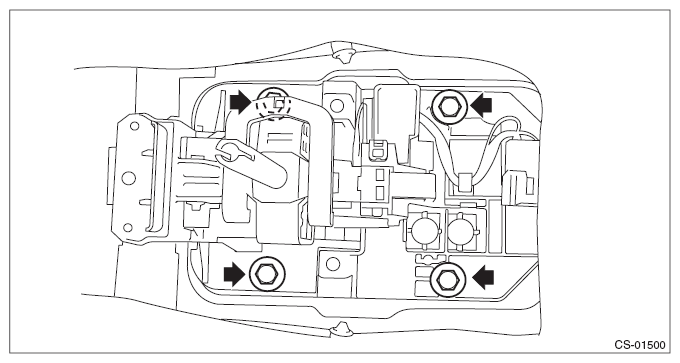

- Tighten the four mounting bolts to attach the select lever assembly to the vehicle body.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Connect the harness connector.

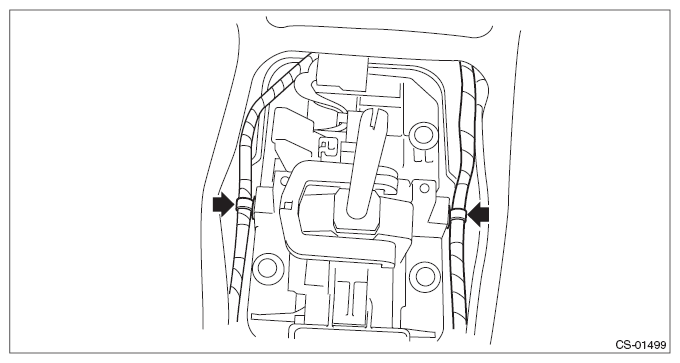

- Install the harness clip to the select lever assembly.
- Shift the select lever to "N" range.
- Install the indicator assembly, then connect the connector. (Model with boot shifter)NOTE: Insert the select lever through the blind hole sufficiently.
