2016 Subaru Crosstrek BaseFACTORY OEM SERVICE PROCEDURE
At Select Lever Assembly

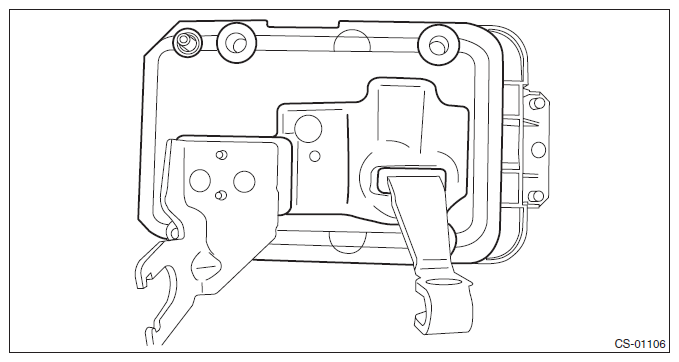

- Remove the spacer plate.
- Remove the gasket.
- Insert a flat tip screwdriver with a thin tip under the connector and disconnect the harness connector from the plate COMPL.
- Remove the harness from the plate COMPL.

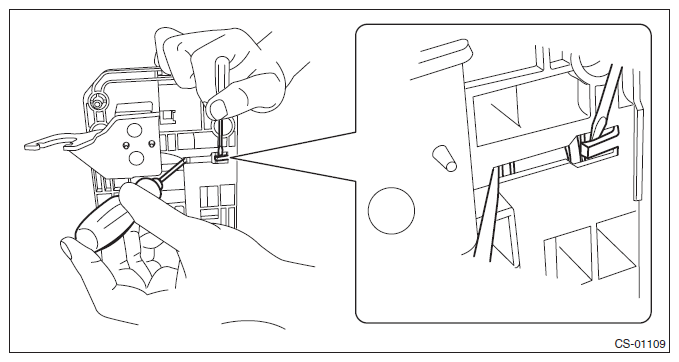

- Raise the claw with a flat tip screwdriver with a thin tip and remove the solenoid unit.

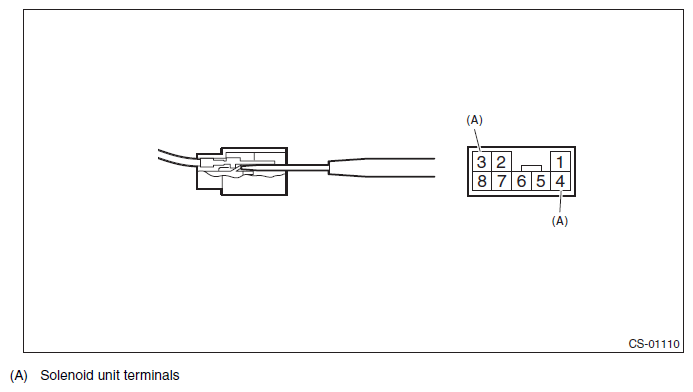

- Remove the terminal of the solenoid unit using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less, KTC connector terminal tool ECC-1T or equivalent.

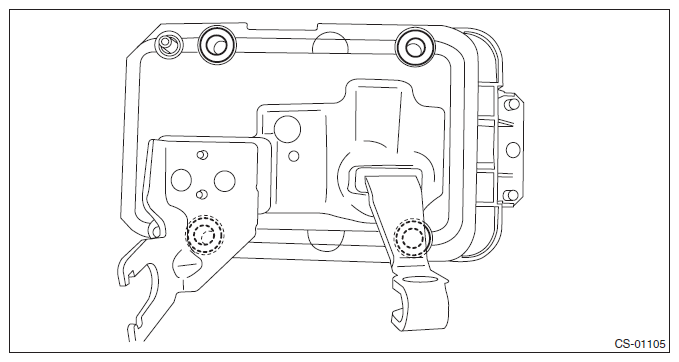

- Remove the clamp push nut.NOTE: Replace the clamp push nut with a new part.
