2016 Subaru Crosstrek BaseFACTORY OEM SERVICE PROCEDURE

Select Cable: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. < Ref. to REMOVAL , Center Exhaust Pipe. >
  5. Remove the center exhaust cover.
    Fig 1: Identifying Center Exhaust Cover
    G08550562Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the snap pin and washer from the shifter arm.

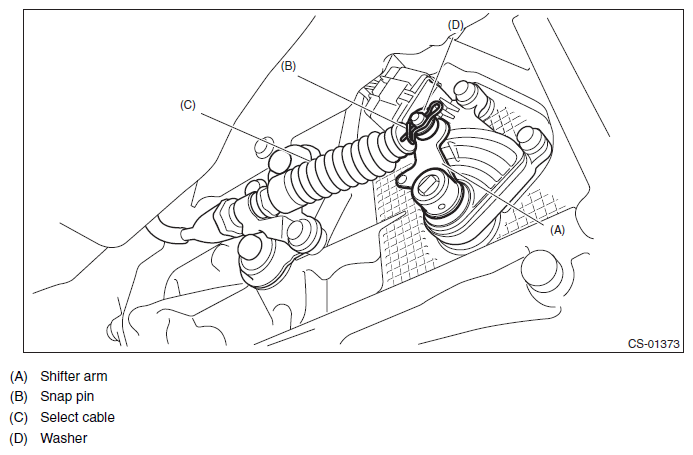

    Fig 2: Identifying Snap Pin, Washer And Shifter Arm
    G10319315Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the plate assembly from the transmission case.

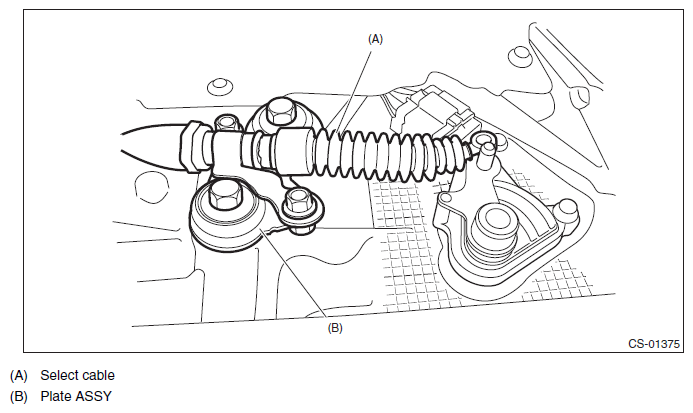

    Fig 3: Identifying Select Cable And Plate Assembly
    G10319316Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the cable from arm COMPL.

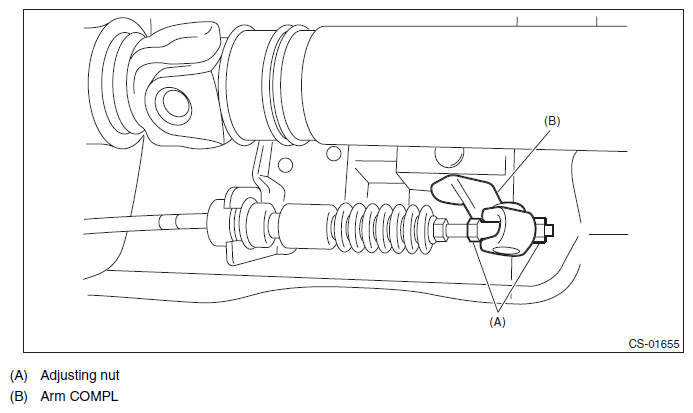

    Fig 4: Identifying Adjusting Nut And Arm COMPL
    G10319317Courtesy of SUBARU OF AMERICA, INC.
  9. Raise the claw of clamp to remove the cable from bracket.

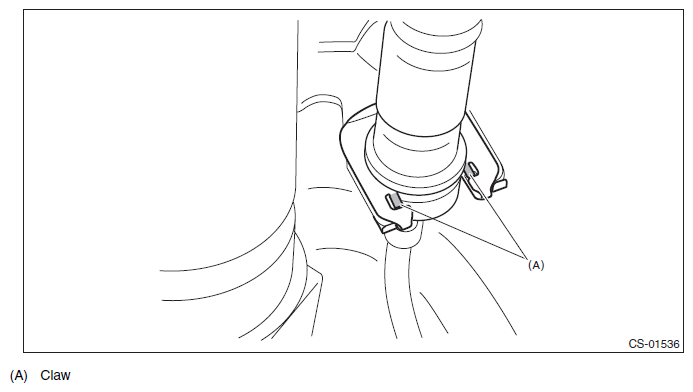

    Fig 5: Identifying Cable Claw And Bracket
    G10319318Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the select cable from plate assembly.
