Select Cable: Installation

  1. Position the select cable as shown in the figure, and install it to the plate assembly.
    CAUTION:
    • If the cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.
    • Do not adjust the cable end direction by turning it forcibly to prevent the boot from being twisted.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

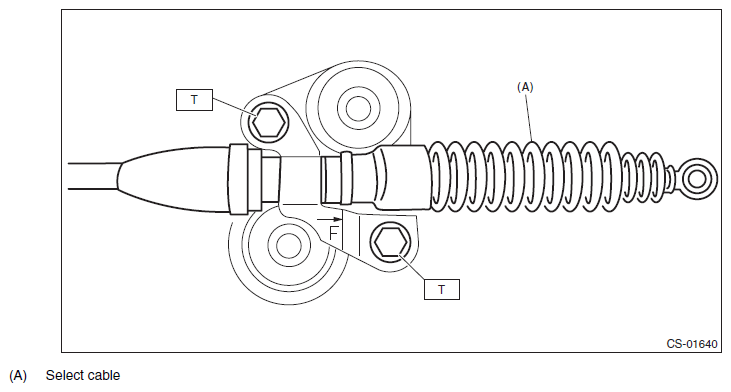

    Fig 1: Identifying Select Cable
    G10319319Courtesy of SUBARU OF AMERICA, INC.
  2. Install the select cable to the shifter arm.
  3. Install the plate assembly to transmission.

    Tightening torque:

    T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

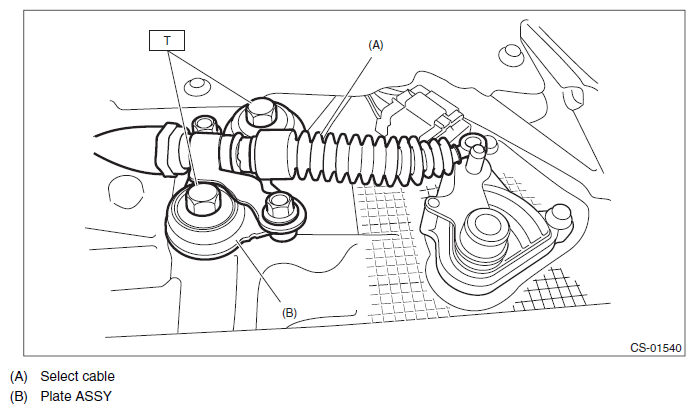

    Fig 2: Identifying Select Cable And Plate Assembly
    G10319320Courtesy of SUBARU OF AMERICA, INC.
  4. Install the washer and snap pin to the shifter arm.

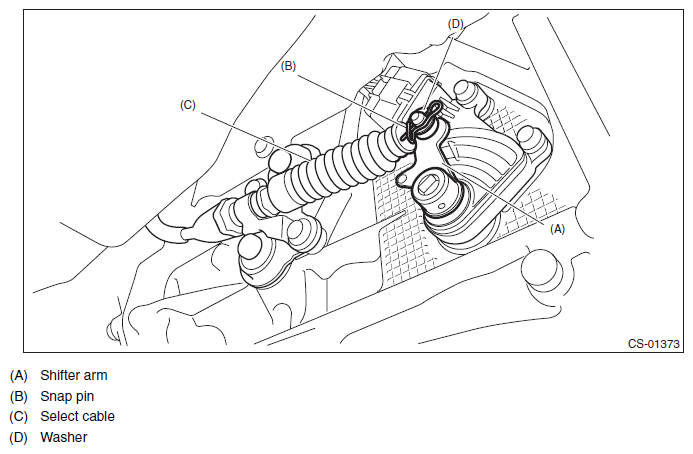

    Fig 3: Identifying Washer, Snap Pin And Shifter Arm
    G10319321Courtesy of SUBARU OF AMERICA, INC.
  5. Install new clamp paying attention to the installing direction.

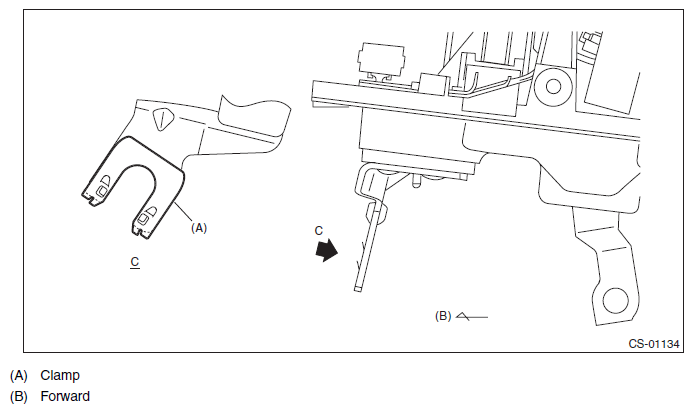

    Fig 4: Installing Clamp
    G10319322Courtesy of SUBARU OF AMERICA, INC.
  6. Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.
    Fig 5: Inserting Inner Cable Tip Into Select Lever Connector Hole
    G08550615Courtesy of SUBARU OF AMERICA, INC.
  7. Shift the select lever to the "N" range, and then adjust the select cable position. < Ref. to ADJUSTMENT , Select Cable. >
  8. Install the center exhaust cover.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

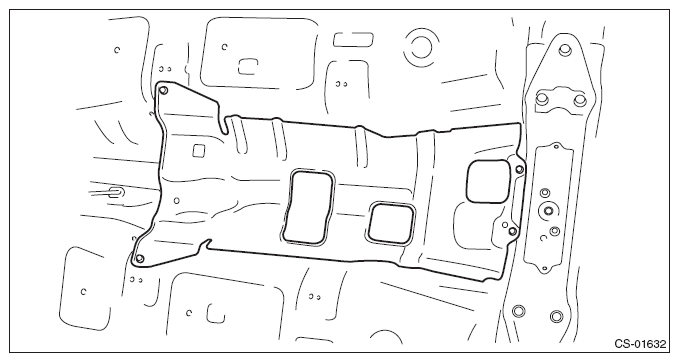

    Fig 6: Identifying Center Exhaust Cover
    G08550562Courtesy of SUBARU OF AMERICA, INC.
  9. Install the center exhaust pipe. < Ref. to INSTALLATION , Center Exhaust Pipe. >
  10. Lower the vehicle.
  11. Connect the battery ground terminal. < Ref. to BATTERY , NOTE, Note. >
