2016 Subaru Crosstrek BaseFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G08317298Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.
    Fig 2: Identifying Air Intake Boot Clip And Clamps
    G09475465Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot from the air cleaner case (rear) and throttle body, and move it to the left side wheel apron.
    Fig 3: Removing Air Intake Boot From Air Cleaner Case (Rear) And Throttle Body
    G09476922Courtesy of SUBARU OF AMERICA, INC.

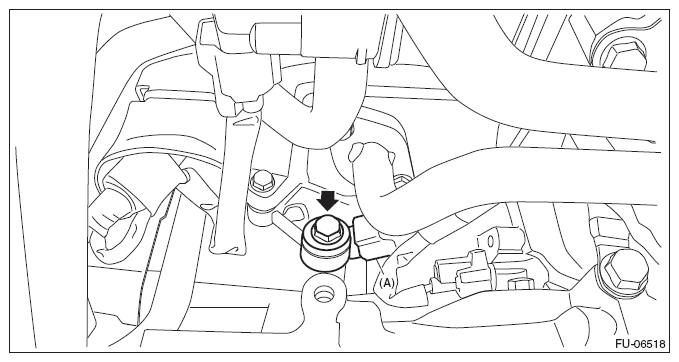

  4. Disconnect the connector (A) from the knock sensor, and remove the knock sensor from the cylinder block.
    Fig 4: Identifying Knock Sensor Connector With Bolt
    G08315408Courtesy of SUBARU OF AMERICA, INC.
