2016 Subaru Crosstrek BaseFACTORY OEM SERVICE PROCEDURE

Intake Manifold: Removal

  1. Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
  2. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G08317298Courtesy of SUBARU OF AMERICA, INC.
  3. Open the fuel filler lid and remove the fuel filler cap.
    NOTE: This operation is required to release the inner pressure of the fuel tank.
  4. Lift up the vehicle.
  5. Remove the under cover. < Ref. to REMOVAL , Front Under Cover. >
  6. Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. < Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  7. Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

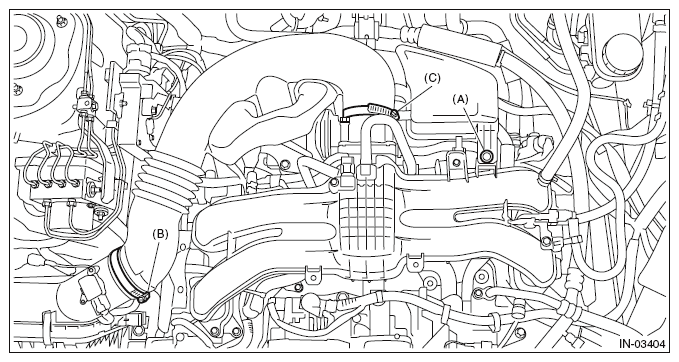

    Fig 2: Identifying Air Intake Boot Clip And Clamps
    G09475465Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the air intake boot from the air cleaner case (rear) and throttle body, and move it to the left side wheel apron.

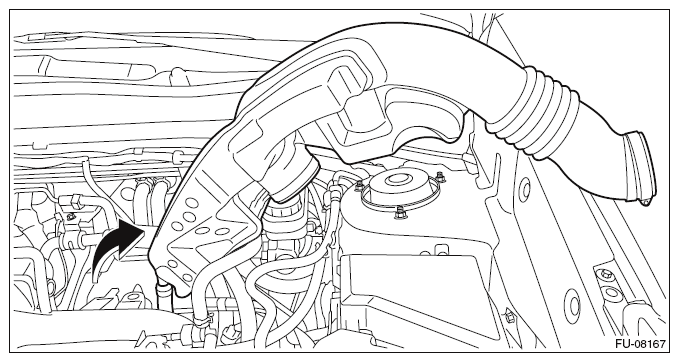

    Fig 3: Removing Air Intake Boot From Air Cleaner Case (Rear) And Throttle Body
    G09476922Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the preheater hose from throttle body.

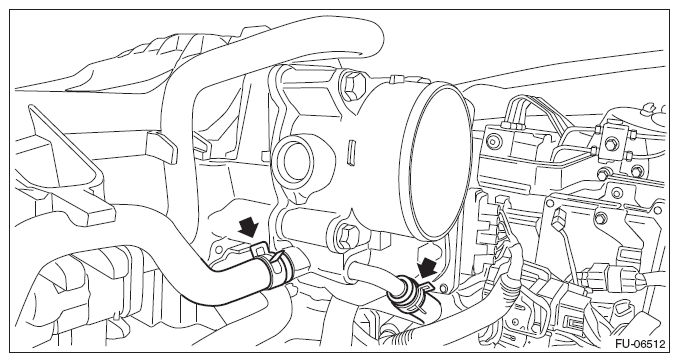

    Fig 4: Locating Preheater Hose Clamps
    G08315334Courtesy of SUBARU OF AMERICA, INC.
  10. Disconnect the connector (A) from the purge control solenoid valve.
  11. Loosen the bolt (B) which secures the EGR pipe to the intake manifold.
  12. Remove the nut (C) which holds EGR pipe from the water pipe assembly.
    Fig 5: Identifying Purge Control Solenoid Valve Connector, EGR Pipe Bolts And Nut
    G08315335Courtesy of SUBARU OF AMERICA, INC.
  13. Disconnect the PCV hose (A) from intake manifold.
  14. Disconnect the connector (B) from manifold absolute pressure sensor.
  15. Disconnect the connector (C) from the throttle position sensor.

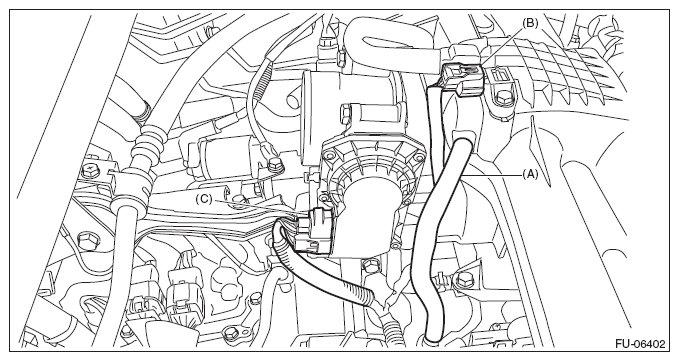

    Fig 6: Identifying PCV Hose, Manifold Absolute Pressure Sensor And Throttle Position Sensor Connector
    G08315336Courtesy of SUBARU OF AMERICA, INC.
  16. Disconnect the brake booster vacuum hose from the intake manifold.

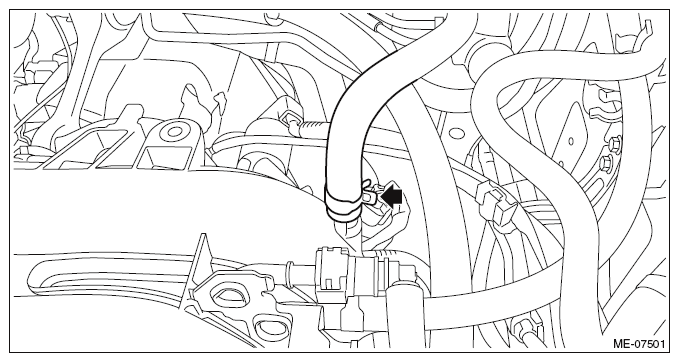

    Fig 7: Locating Brake Booster Vacuum Hose Clamp
    G09475476Courtesy of SUBARU OF AMERICA, INC.
  17. Disconnect the connector from the mass air flow and intake air temperature sensor, and remove the clip (A) securing the bulkhead wiring harness.

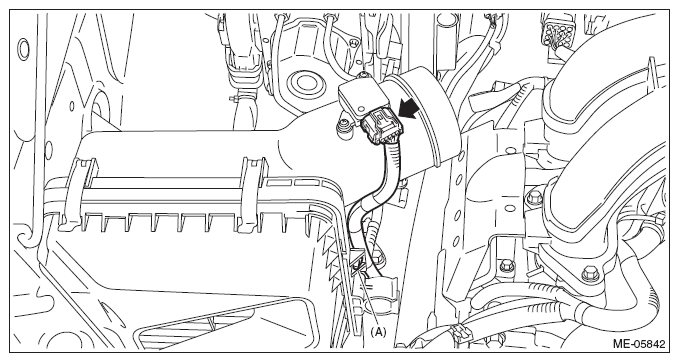

    Fig 8: Locating Mass Air Flow And Intake Air Temperature Sensor Connector
    G08316829Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the air cleaner case (rear) together with the air cleaner element.

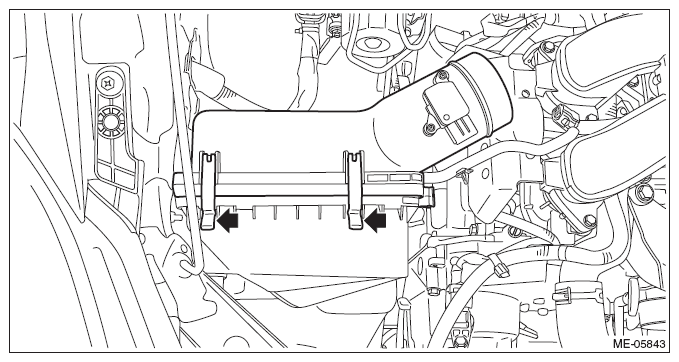

    Fig 9: Locating Air Cleaner Case (Rear)
    G08316830Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the intake manifold protector RH.

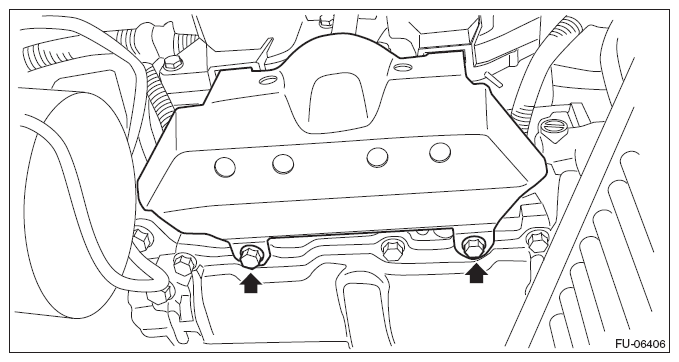

    Fig 10: Locating Intake Manifold Protector RH Bolts
    G08315340Courtesy of SUBARU OF AMERICA, INC.
  20. Disconnect the fuel delivery pipe from the fuel pipe RH.
    CAUTION:
    • Be careful not to spill fuel.
    • Catch the fuel from the pipes using a container or cloth.
