2016 Subaru Crosstrek BaseFACTORY OEM SERVICE PROCEDURE
VDC Control Module and Hydraulic Control Unit (VDCCM&H/U): Inspection: Notes
- Check the identification (a) of the VDC control module & hydraulic control unit (VDCCM&H/U).NOTE: For the identification, refer to "SPECIFICATION" in "General Description". < Ref. to SPECIFICATION , General Description. >

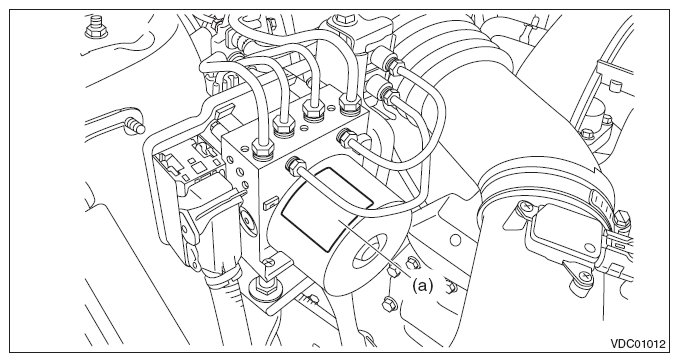

- Models without EyeSight

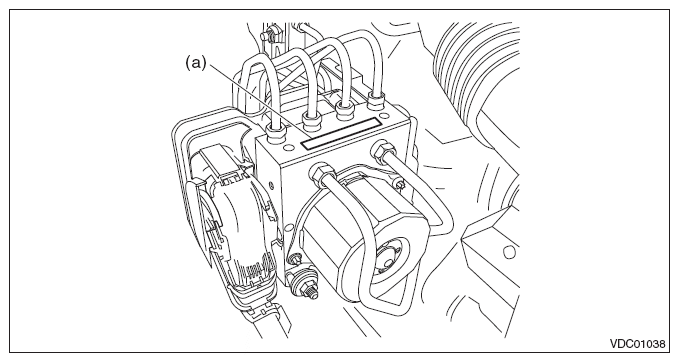

- Models with EyeSight
- Check the condition of connection and settlement of connector, and correct or replace if defective.
