2016 Subaru Crosstrek BaseFACTORY OEM SERVICE PROCEDURE
Engine Control Module (ECM): Removal

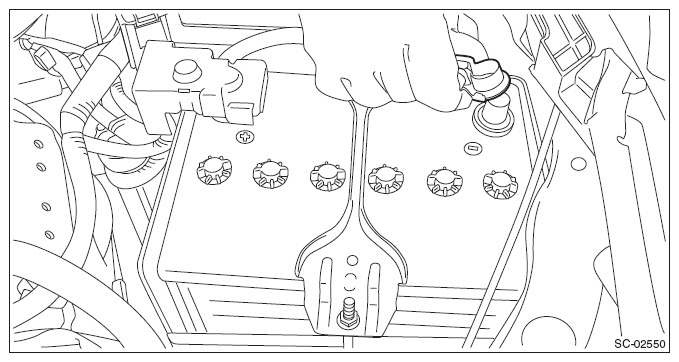

- Disconnect the ground cable from battery.

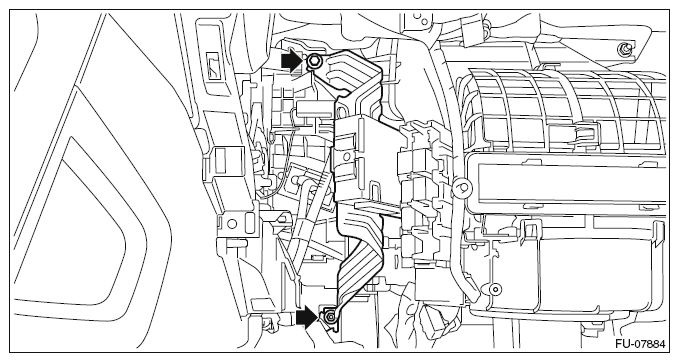

- Remove the glove box. < Ref. to REMOVAL , Glove Box. >

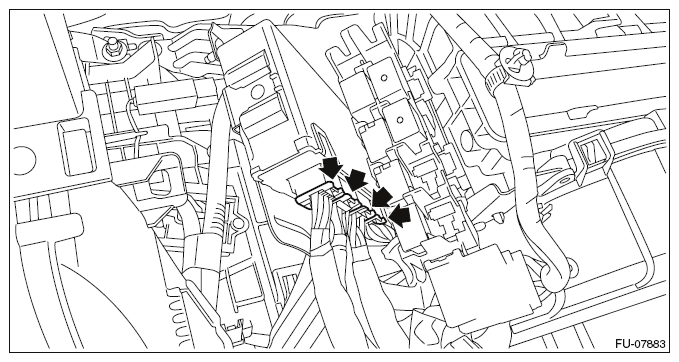

- Disconnect the connector from ECM.
- Remove the bolts and nuts, and remove the ECM.
