2016 Subaru Crosstrek BaseFACTORY OEM SERVICE PROCEDURE

Keyless Access Control Module

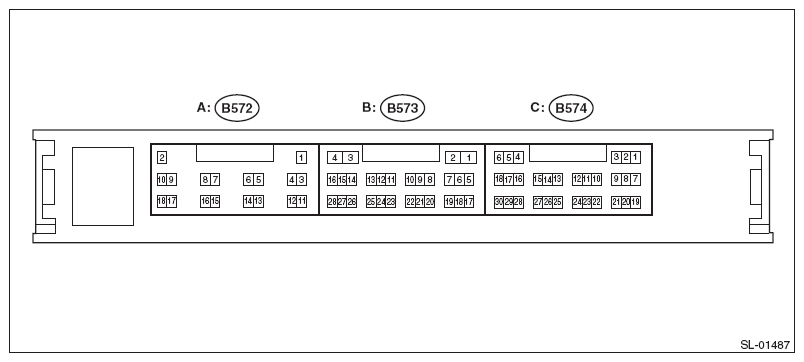

Fig 1: Identifying Keyless Access Control Module I/O Signal Connector Terminals
G09485369Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Terminal symbol Contents
(B572) No. 2 +B +B
(B572) No. 3 INDS Start switch indicator (green) output
(B572) No. 5 N-SW Neutral switch input
(B572) No. 7 STSW STSW output
(B572) No. 9 IG2D IG2 relay drive output
(B572) No. 10 CLUT Clutch switch input
(B572) No. 11 GND GND
(B572) No. 13 EGIO Immobilizer communication 1
(B572) No. 17 TACH Engine speed input
(B572) No. 18 STPI Stop light switch input
(B573) No. 1 CG8B Outside rear antenna output -
(B573) No. 2 CLG8 Outside rear antenna output +
(B573) No. 5 RCO Tuner power supply
(B573) No. 8 CG7B Inside rear antenna output -
(B573) No. 9 CLG7 Inside rear antenna output +
(B573) No. 10 CG6B Inside center antenna output -
(B573) No. 11 CLG6 Inside center antenna output +
(B573) No. 15 IDW ID code box presence judgment terminal
(B573) No. 17 RDA Tuner reception data input
(B573) No. 19 RSSI Tuner reception start signal input
(B573) No. 27 TSW5 Rear gate lock request SW input/trunk opener button input
(B573) No. 28 ACCR ACC cutoff input
(B574) No. 1 VC5 Immobilizer amplifier power supply (start switch)
(B574) No. 2 CG5B Inside front antenna output -
(B574) No. 3 CLG5 Inside front antenna output +
(B574) No. 4 ACCD ACC relay drive output
(B574) No. 5 IG IGN power supply
(B574) No. 6 IG1D IG1 relay drive output
(B574) No. 7 CODE Immobilizer signal reception (start switch)
(B574) No. 8 TSW2 Passenger's lock sensor signal input
(B574) No. 9 TXCT Immobilizer signal transmission (start switch)
(B574) No. 10 CG2B Passenger's antenna output -
(B574) No. 11 CLG2 Passenger's antenna output +
(B574) No. 12 CLG1 Driver's antenna output +
(B574) No. 13 CG1B Driver's antenna output -
(B574) No. 14 CANH HS-CAN H
(B574) No. 15 CANL HS-CAN L
(B574) No. 16 SWIL Start switch character illumination output
(B574) No. 17 LIN LIN communication
(B574) No. 18 INDW Start switch indicator (orange) output
(B574) No. 19 POS1 Driver's sensor drive power supply
(B574) No. 20 TSW1 Driver's lock sensor signal input
(B574) No. 21 POS2 Passenger's sensor drive power supply
(B574) No. 22 SEN1 Driver's unlock sensor signal input
(B574) No. 23 SEN2 Passenger's unlock sensor signal input
(B574) No. 24 AGND Immobilizer amplifier GND (start switch)
(B574) No. 25 P Parking position switch input
(B574) No. 26 SLP Steering lock position input
(B574) No. 27 SPD Vehicle speed signal input
(B574) No. 28 SSW1 Start switch input 1
(B574) No. 29 SLR+ Steering motor power supply signal output
(B574) No. 30 SSW2 Start switch input 2

Disconnect the control module connector (B572) before checking the following items.

NOTE: If the measured value is out of standard, it is possible that the vehicle has a fault.
Terminal No. Item Measuring condition Standard
(B572) No. 2 (+B) ←→ (B572) No. 11 (GND) Voltage Always 9.5 - 16 V
(B572) No. 11 (GND) ←→ Chassis ground Resistance Always Less than 1 Ξ©
NOTE: If the measured value is out of standard, it is possible that the vehicle has a fault.
Terminal No. Item Measuring condition Standard
(B573) No. 15 (IDW) ←→ Chassis ground (For EK, ER, EN models only) Continuity Always Continuity exists

Disconnect the control module connectors (B574) and (B572) before checking the following items.

NOTE: If the measured value is out of standard, it is possible that the vehicle has a fault.
Terminal No. Item Measuring condition Standard
(B574) No. 4 (ACCD) ←→ Chassis ground Resistance Always (20Β°C) 152.61 - 216.5 Ξ©
(B572) No. 9 (IG2D) ←→ Chassis ground Resistance Always (20Β°C) 74.15 - 460.88 Ξ©
(B574) No. 6 (IG1D) ←→ Chassis ground Resistance Always (20Β°C) 50.87 - 72.17 Ξ©
(B572) No. 18 (STP1) ←→ Chassis ground (AT model only) Voltage Brake pedal depressed β†’ released 11 - 14 V β†’ 1 V or less
(B574) No. 25 (P) ←→ Chassis ground (AT model only) Resistance Except for shift positions P β†’ Shift position P 40 kΞ© or more β†’ 200 Ξ© or less
(B574) No. 27 (SPD) ←→ Chassis ground Resistance Always 30 kΞ© or more
(B574) No. 28 (SSW1) ←→ Chassis ground Resistance Push button ignition switch pressed β†’ released Less than 1 Ξ© β†’ 10 kΞ© or more
(B574) No. 29 (SLR+) ←→ Chassis ground Resistance Always 10 kΞ© or more
(B574) No. 30 (SSW2) ←→ Chassis ground Resistance Push button ignition switch pressed β†’ released Less than 1 Ξ© β†’ 10 kΞ© or more
(B574) No. 17 (LIN) ←→ Chassis ground Continuity Always Continuity does not exist
(B574) No. 14 (CANH) ←→ Chassis ground Pulse ACC ON or IGN ON Pulse generation
(B574) No. 15 (CANL) ←→ Chassis ground Pulse ACC ON or IGN ON Pulse generation

Connect the control module connector before checking the following items.

NOTE: If the measured value is out of standard, it is possible that the keyless access CONTROL MODULE has a fault.
Terminal No. Item Measuring condition Standard
(B574) No. 1 (VC5) ←→ (B574) No. 24 (AGND) Voltage 30 seconds or more have passed after the door was opened or closed with IG OFF and the brake pedal released. 1 V or less
Waveform Within 30 seconds after the push button ignition switch is pressed with IG OFF and access key not in the passenger room Waveform 1
(B574) No. 2 (CG5B) ←→ (B572) No. 11 (GND) Pulse All doors closed, ACC and IG OFF, access key not in passenger room, touch sensor (lock) OFF β†’ ON No pulse output β†’ Pulse output detected
(B574) No. 3 (CLG5) ←→ (B572) No. 11 (GND) Pulse All doors closed, ACC and IG OFF, access key not in passenger room, touch sensor (lock) OFF β†’ ON No pulse output β†’ Pulse output detected
(B574) No. 4 (ACCD) ←→ (B572) No. 11 (GND) Voltage IG OFF β†’ ACC ON 1 V or less β†’ 9 - 14 V
(B574) No. 6 (IG1D) ←→ (B572) No. 11 (GND) Voltage ACC ON β†’ IG ON 1 V or less β†’ 9 - 14 V
(B574) No. 7 (CODE) ←→ (B574) No. 24 (AGND) Voltage 30 seconds or more have passed after the door was opened or closed with IG OFF and the brake pedal released. 1 V or less
Waveform Turn the ignition switch to OFF and with the access key near the push button ignition switch, press the push button ignition switch(1) Waveform 2
(B574) No. 9 (TXCT) ←→ (B574) No. 24 (AGND) Voltage 30 seconds or more have passed after the door was opened or closed with IG OFF and the brake pedal released. 1 V or less
Waveform Turn the ignition switch to OFF and with the access key near the push button ignition switch, press the push button ignition switch(1) Waveform 3
(B574) No. 10 (CG2B) ←→ (B572) No. 11 (GND) Pulse ACC and IG OFF, all doors closed, all doors locked by lock operation with wireless remote control, access key not in passenger room No pulse output β†’ Pulse output detected
(B574) No. 11 (CLG2) ←→ (B572) No. 11 (GND) Pulse ACC and IG OFF, all doors closed, all doors locked by lock operation with wireless remote control, access key not in passenger room No pulse output β†’ Pulse output detected
(B574) No. 12 (CLG1) ←→ (B572) No. 11 (GND) Pulse ACC and IG OFF, all doors closed, all doors locked by lock operation with wireless remote control, access key not in passenger room No pulse output β†’ Pulse output detected
(B574) No. 13 (CG1B) ←→ (B572) No. 11 (GND) Pulse ACC and IG OFF, all doors closed, all doors locked by lock operation with wireless remote control, access key not in passenger room No pulse output β†’ Pulse output detected
(B574) No. 19 (POS1) ←→ (B572) No. 11 (GND) Voltage ACC and IG OFF β†’ ACC or IG ON 9 - 14 V β†’ less than 2 V
(B574) No. 21 (POS2) ←→ (B572) No. 11 (GND) Voltage ACC and IG OFF β†’ ACC or IG ON 9 - 14 V β†’ less than 2 V
(B574) No. 24 (AGND) ←→ Chassis ground Resistance Always Less than 1 Ξ©
(B574) No. 25 (P) ←→ (B572) No. 11 (GND) (AT model only) Voltage Except for shift positions P β†’ Shift position P 9 - 14 V or more β†’ 1.5 V or less
(B574) No. 26 (SLP) ←→ (B572) No. 11 (GND) Voltage With ignition switch OFF and shift position P, Steering lock β†’ Steering unlock 11 - 14 V β†’ 1.2 V or less
(B574) No. 27 (SPD) ←→ Chassis ground Pulse Driving at approx. 5 km/h Pulse generation according to vehicle speed (approx. 5 km/h: 3.54 Hz)
(B574) No. 28 (SSW1) ←→ (B572) No. 11 (GND) Voltage Push button ignition switch released β†’ pressed 11 - 14 V β†’ 1 V or less
(B574) No. 29 (SLR+) ←→ (B572) No. 11 (GND) Voltage When the following conditions are met, the doors are closed β†’ opened, and steering lock motor is driven
  • Steering lock is unlocked
  • IG OFF
  • Shift position P
 11 - 14 V (Steering lock motor is stopped) β†’ 1 V or less (Steering lock motor is driven)
(B574) No. 30 (SSW2) ←→ (B572) No. 11 (GND) Voltage Push button ignition switch released β†’ pressed 11 - 14 V β†’ 1 V or less
(B573) No. 1 (CG8B) ←→ (B572) No. 11 (GND) Pulse ACC and IG OFF, all doors closed, all doors locked, trunk opener button or rear gate opener button OFF β†’ ON No pulse output β†’ Pulse output detected
(B573) No. 2 (CLG8) ←→ (B572) No. 11 (GND) Pulse ACC and IG OFF, all doors closed, all doors locked, trunk opener button or rear gate opener button OFF β†’ ON No pulse output β†’ Pulse output detected
(B573) No. 5 (RCO) ←→ (B572) No. 11 (GND) Voltage ACC and IG OFF, access key is locked or unlock switch OFF β†’ ON 1 V or less β†’ 4.5 - 5.5 V
(B573) No. 8 (CG7B) ←→ (B572) No. 11 (GND) (5 door model) Pulse All doors closed, ACC and IG OFF, access key not in passenger room, touch sensor (lock) OFF β†’ ON No pulse output β†’ Pulse output detected
(B573) No. 8 (CG7B) ←→ (B572) No. 11 (GND) (4 door model) Pulse All doors closed, all doors locked, trunk opened β†’ closed No pulse output β†’ Pulse output detected
(B573) No. 9 (CLG7) ←→ (B572) No. 11 (GND) (5 door model) Pulse All doors closed, ACC and IG OFF, access key not in passenger room, touch sensor (lock) OFF β†’ ON No pulse output β†’ Pulse output detected
(B573) No. 9 (CLG7) ←→ (B572) No. 11 (GND) (4 door model) Pulse All doors closed, all doors locked, trunk opened β†’ closed No pulse output β†’ Pulse output detected
(B573) No. 19 (RSSI) ←→ (B572) No. 11 (GND) Voltage All doors closed, all doors locked, access key is locked or unlock switch OFF β†’ ON 11 - 14 V β†’ 2 V or less
(B573) No. 27 (TSW5) ←→ (B572) No. 11 (GND) Pulse/voltage ACC and IG OFF, all doors locked, trunk opener button or rear gate lock button OFF β†’ ON 9 V or more β†’ less than 2 V
(B572) No. 9 (IG2D) ←→ (B572) No. 11 (GND) Voltage ACC ON β†’ IG ON 1 V or less β†’ 9 - 14 V
(B572) No. 13 (EGIO) ←→ (B574) No. 24 (AGND) Voltage/pulse Within 3 seconds after engine has been initially ignited or within 3 seconds after initial IG ON following battery removal and installation 11 - 14 V β†’ pulse generation (waveform 4)
(B574) No. 8 (TSW2) ←→ (B572) No. 11 (GND) Voltage ACC and IG OFF, all doors closed, all doors locked, access key carried, passenger's seat touch sensor (lock) OFF β†’ ON 9 V or more β†’ less than 2 V (β†’ 9 V or more)
(B574) No. 20 (TSW1) ←→ (B572) No. 11 (GND) Voltage ACC and IG OFF, all doors closed, all doors locked, access key carried, driver's seat touch sensor (lock) OFF β†’ ON 9 V or more β†’ less than 2 V (β†’ 9 V or more)
(B574) No. 23 (SEN2) ←→ (B572) No. 11 (GND) Voltage ACC and IG OFF, all doors closed, all doors locked, access key carried, passenger's seat touch sensor (unlock) OFF β†’ ON 9 V or more β†’ less than 2 V (β†’ 9 V or more)
(B574) No. 22 (SEN1) ←→ (B572) No. 11 (GND) Voltage ACC and IG OFF, all doors closed, all doors locked, access key carried, driver's seat touch sensor (unlock) OFF β†’ ON 9 V or more β†’ less than 2 V (β†’ 9 V or more)
(B574) No. 16 (SWIL) ←→ (B572) No. 11 (GND) Voltage When illumination of start switch goes off, headlight goes OFF β†’ ON Less than 2 V β†’ 9 V or more
(B572) No. 17 (TACH) ←→ Chassis ground Waveform While engine idling Pulse generation (waveform 5)
(B573) No. 28 (ACCR) ←→ (B572) No. 11 (GND) Voltage Brake pedal depressed, push button ignition switch pressed (while cranking) β†’ Except when cranking Less than 2 V β†’ 9 V or more
(B572) No. 5 (N-SW) ←→ (B572) No. 11 (GND) Voltage ACC ON β†’ IG ON Less than 2 V β†’ 9 V or more
(B573) No. 10 (CG6B) ←→ (B572) No. 11 (GND) (4 door models only) Pulse All doors closed, ACC and IG OFF, access key not in passenger room, touch sensor (lock) OFF β†’ ON No pulse output β†’ Pulse output detected
(B573) No. 11 (CG6G) ←→ (B572) No. 11 (GND) (4 door models only) Pulse All doors closed, ACC and IG OFF, access key not in passenger room, touch sensor (lock) OFF β†’ ON No pulse output β†’ Pulse output detected
(B573) No. 17 (RDA) ←→ (B572) No. 11 (GND) Pulse All doors closed, ACC and IG OFF, access key not in passenger room, touch sensor (lock) OFF β†’ ON 2 V or less β†’ 11 - 14 V β†’ 2 V or less
(B572) No. 7 (STSW) ←→ (B572) No. 11 (GND) Voltage Shift lever is in position P or position N and access key is in passenger room. While depressing the brake pedal, press the push button ignition switch. (Engine start) Less than 2 V β†’ 9 V or more
(B572) No. 3 (INDS) ←→ (B572) No. 11 (GND) Voltage Depress the brake pedal. 9 V or more
(B574) No. 18 (INDW) ←→ (B572) No. 11 (GND) Voltage With ACC ON or IG ON, brake pedal not depressed. 9 V or more
NOTE:
(1) Remove the access key battery before checking.
  1. Waveform 1

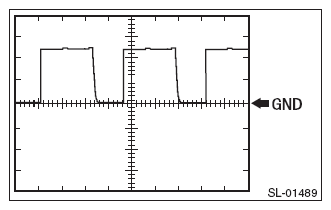

    Fig 2: Keyless Access Control Module Connector Signal Waveform 1
    G08585632Courtesy of SUBARU OF AMERICA, INC.
    Item Contents
    Measured terminal (B574) No. 1 (VC5) ←→ (B574) No. 24 (AGND)
    Equipment setting 2 V/DIV, 200 ms/DIV
    Measuring condition Within 30 seconds after the push button ignition switch is pressed with IG OFF and access key not in the passenger room
  2. Waveform 2

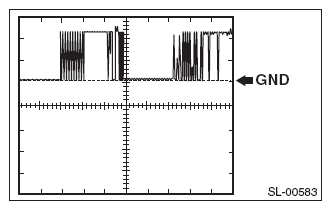

    Fig 3: Keyless Access Control Module Connector Signal Waveform 2
    G08585633Courtesy of SUBARU OF AMERICA, INC.
    Item Contents
    Measured terminal (B574) No. 7 (CODE) ←→ (B574) No. 24 (AGND)
    Equipment setting 2 V/DIV, 20 ms/DIV
    Measuring condition Turn the ignition switch to OFF and with the access key near the push button ignition switch, press the push button ignition switch. (1)
    NOTE:
    (1) Remove the access key battery before checking.
  3. Waveform 3

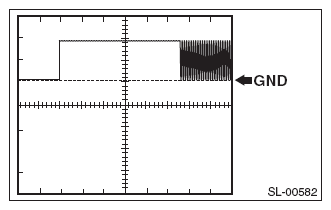

    Fig 4: Keyless Access Control Module Connector Signal Waveform 3
    G08585634Courtesy of SUBARU OF AMERICA, INC.
    Item Contents
    Measured terminal (B574) No. 9 (TXCT) ←→ (B574) No. 24 (AGND)
    Equipment setting 2 V/DIV, 20 ms/DIV
    Measuring condition Within 30 seconds after the push button ignition switch is pressed with IG OFF and access key not in the passenger room
  4. Waveform 4

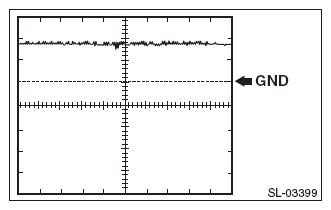

    Fig 5: Keyless Access Control Module Connector Signal Waveform 4
    G10219801Courtesy of SUBARU OF AMERICA, INC.
    Item Contents
    Measured terminal (B572) No. 13 (EGIO) ←→ (B572) No. 11 (GND)
    Equipment setting 5 V/DIV, 100 ms/DIV
    Measuring condition Within 3 seconds after engine has been initially ignited or within 3 seconds after initial IG ON following battery removal and installation
  5. Waveform 5

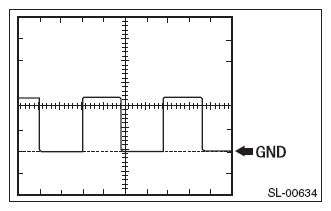

    Fig 6: Keyless Access Control Module Connector Signal Waveform 5
    G08585636Courtesy of SUBARU OF AMERICA, INC.
    Item Contents
    Equipment setting 5 V/DIV, 100 ms/DIV
