2016 Subaru BRZ Series.HyperBlueFACTORY OEM SERVICE PROCEDURE

Steering Column Assembly: Disassembly

  1. Removal of the steering column upper W/switch bracket assembly (without smart entry)
    1. Secure the steering column assembly in a vise between aluminum plates.
      CAUTION: Do not close the vise too strongly.
    2. Use a drill to make a hole with a reverse tap in the steering lock set bolt head.
    3. Use the reverse tap to pull out the steering lock set bolt and remove the steering column upper W/switch bracket assembly.

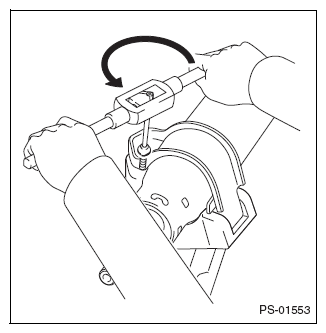

      Fig 1: Removing Steering Lock Set Bolt
      G08555416Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of the ignition or starter switch assembly (without smart entry)
    1. Undo the two screws and remove the ignition or starter switch assembly from the steering column upper bracket.
      CAUTION:
      • When doing this, please ensure that the ignition or starter switch assembly is on the top and the steering column upper bracket is on the bottom side.
      • Inspect the condition of the press-fit areas marked by the arrows and replace the steering column upper bracket with a new part if you notice any play or unsteadiness.
