2016 Subaru BRZ Series.HyperBlueFACTORY OEM SERVICE PROCEDURE
Engine Switch: Removal
- Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
- Console box cover FR removal (Refer to REMOVAL )
- Push button start switch removal

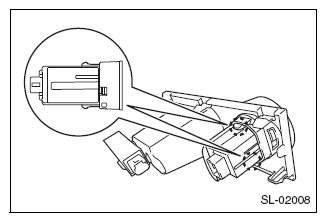

- Release the two claws from the back side of console box cover FR and remove the push button start switch.
