Main Body ECM: Installation
- Precautions
Always carry out work support when replacing the main body ECM (Network gateway computer). (Refer to WORK SUPPORT )
- Installation of the main body ECM (Network gateway computer)

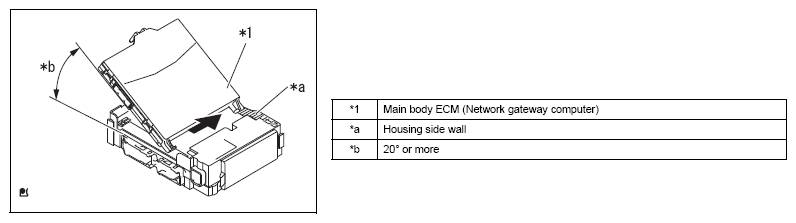

- As shown in the diagram, contact the main body ECM (Network gateway computer) to the instrument panel junction block assembly housing side wall.
