2016 Subaru BRZ Series.HyperBlueFACTORY OEM SERVICE PROCEDURE
Front Speed Sensor: Removal
NOTE:
The following procedure is for LH side. Perform the same procedures both for the LH side and RH side, unless otherwise specified.
- Removal of front tire
- Removal of front mud guard LH (Refer to WASHER MOTOR )
- Removal of speed sensor FR LH

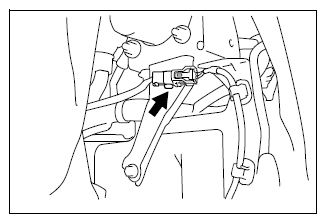

- Disconnect the connector.
- Disconnect 6 clamps.
