Related DTC
| DTC No. | Monitoring items | Reference |
|---|---|---|
| P0441 | Purge flow | |
| P0451 | Difference in pressure between canister pressure sensor (integrated into canister pump module) and air pressure sensor | |
| P0452 | Canister pressure sensor (integrated into canister pump module) voltage LOW | |
| P0453 | Canister pressure sensor (integrated into canister pump module) voltage HIGH | |
| P0455 | Large leak from EVAP | |
| P0456 | Small leak from EVAP | |
| P0458 | Purge VSV voltage LOW | |
| P0459 | Purge VSV voltage HIGH | |
| P1449 | Clogged air filter (integrated into canister pump module) | |
| P1451 | Clogged pipe | |
| P2404 |
|
|
| P2401 | Leak detection pump stuck OFF (integrated into canister pump module) | |
| P2402 | Leak detection pump stuck ON (integrated into canister pump module) | |
| P2419 | Closing of vent valve stuck (integrated into canister pump module) or not | |
| P2420 | Opening of vent valve stuck (integrated into canister pump module) or not | |
| P2610 | Soak timer (integrated into ECM) |

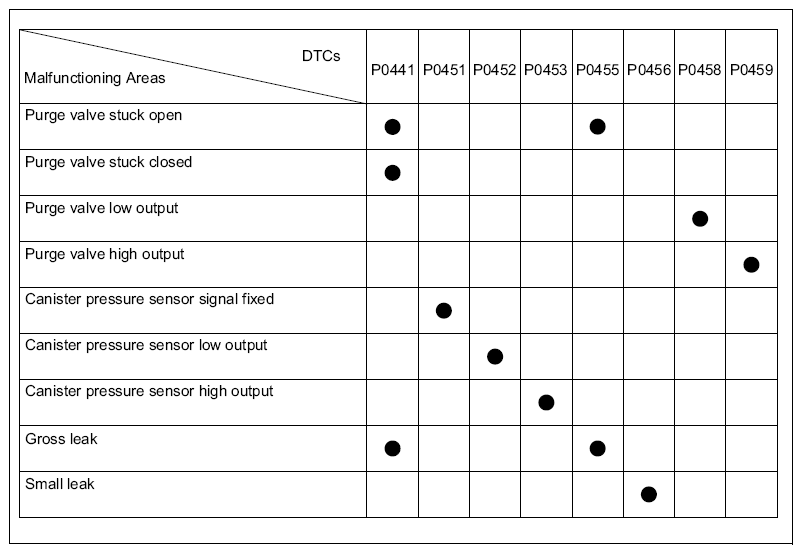

When the DTCs related to the EVAP system have been stored, the malfunctioning section can be located using the table below.
