2016 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE
Throttle Body Assembly (Fa20): Removal
- Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
- Draining of coolant (SUBARU Super Coolant) (Refer to COOLANT (FA20) )
- Air cleaner case sub-assembly removal (Refer to V-BELT (FA20) )
- Removal of throttle body assembly (with motor)

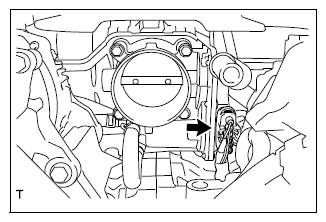

- Disconnect the connector for the throttle body assembly (with motor).

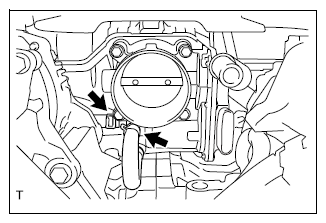

- Slide 2 clamps, and disconnect the water bypass hose No. 2 and water bypass hose No. 3 from the throttle body assembly (with motor).

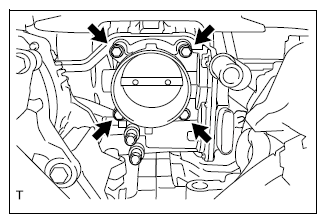

- Remove 4 bolts, and remove the throttle body assembly (with motor) from the intake manifold.
- Remove the throttle body gasket from the intake manifold.
