2016 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE

Camshaft Position Sensor (Fa20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of camshaft position sensor (bank 1 intake side)
    1. Disconnect the connector for camshaft position sensor.
    2. Remove the bolt, and remove the camshaft position sensor.
    3. Remove the O-ring from the camshaft position sensor.

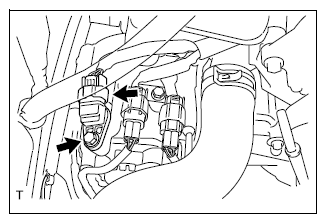

      Fig 1: Locating Camshaft Position Sensor Bolt (Bank 1 Intake Side)
      G10213033Courtesy of SUBARU OF AMERICA, INC.
  3. Removal of camshaft position sensor (bank 1 exhaust side)
    1. Disconnect the connector for camshaft position sensor.
    2. Remove the bolt, and remove the camshaft position sensor.
    3. Remove the O-ring from the camshaft position sensor.

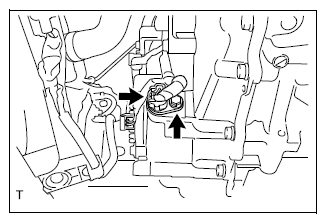

      Fig 2: Locating Camshaft Position Sensor Bolt (Bank 1 Exhaust Side)
      G10213034Courtesy of SUBARU OF AMERICA, INC.
  4. Removal of camshaft position sensor (bank 2 intake side)
    1. Disconnect the connector for camshaft position sensor.
    2. Remove the bolt, and remove the camshaft position sensor.
    3. Remove the O-ring from the camshaft position sensor.

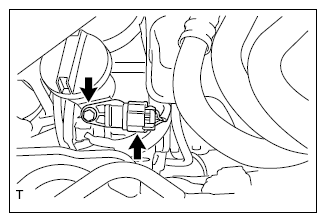

      Fig 3: Locating Camshaft Position Sensor Bolt (Bank 2 Intake Side)
      G10213035Courtesy of SUBARU OF AMERICA, INC.
  5. Under cover front AL removal (Refer to REMOVAL )
  6. Removal of camshaft position sensor (bank 2 exhaust side)
    1. Disconnect the connector for camshaft position sensor.
    2. Remove the bolt, and remove the camshaft position sensor.
    3. Remove the O-ring from the camshaft position sensor.

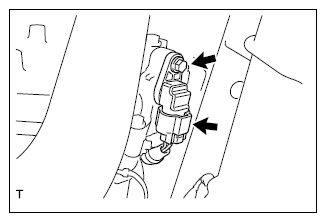

      Fig 4: Locating Camshaft Position Sensor Bolt (Bank 2 Exhaust Side)
      G10213036Courtesy of SUBARU OF AMERICA, INC.
