Battery Current Sensor: Removal
- Precautions
After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to WORKING PRECAUTIONS AND NOTES )

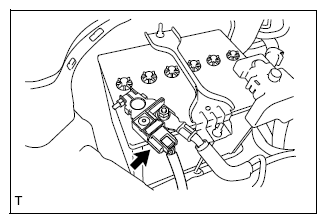

- Removal of the battery current sensor assembly
- Disconnect the connector.
- Undo the nut and disconnect the engine wire from the battery current sensor assembly.CAUTION: The power windows are equipped with an index function that is linked to the opening and closing of the doors and allows the glass to be opened and closed a little. The molding may be damaged when the doors are opened or closed after disconnecting the battery ground terminal when the glass is completely closed. Therefore, always disconnect the battery ground terminal with the driver's or passenger's seat door open (with the glass lowered to a position that allows free door opening and closing).
