2015 Subaru XV Crosstrek BaseFACTORY OEM SERVICE PROCEDURE

Select Cable: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. < Ref. to REMOVAL , Center Exhaust Pipe.>
  5. Remove the center exhaust cover.
    Fig 1: Identifying Center Exhaust Cover
    G08550562Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the snap pin and washer from the shifter arm.

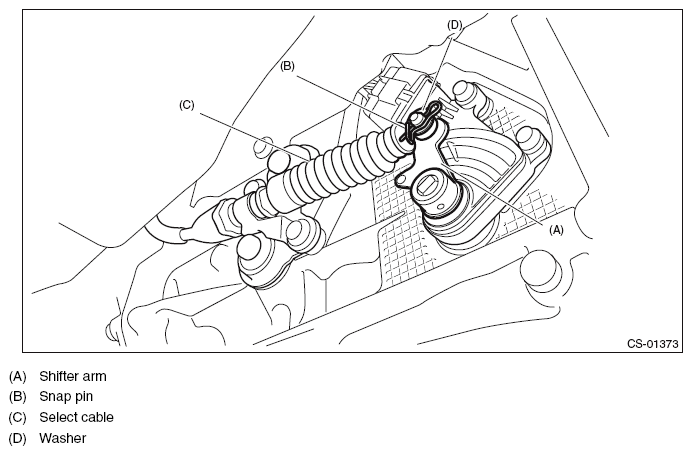

    Fig 2: Identifying Shifter Arm, Snap Pin, Select Cable And Washer
    G09487607Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the plate assembly from the transmission case.

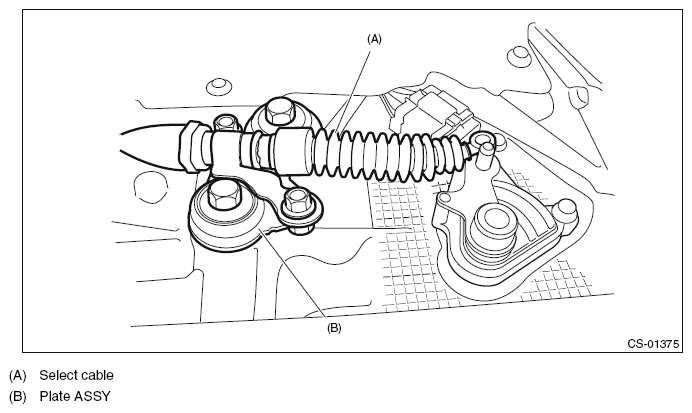

    Fig 3: Identifying Select Cable And Plate ASSY
    G09487608Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the cable from arm COMPL.

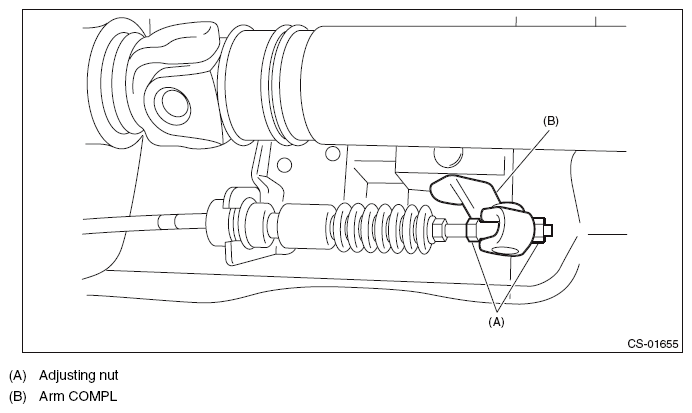

    Fig 4: Identifying Arm COMPL And Adjusting Nut
    G09487609Courtesy of SUBARU OF AMERICA, INC.
  9. Raise the claw of clamp to remove the cable from bracket.

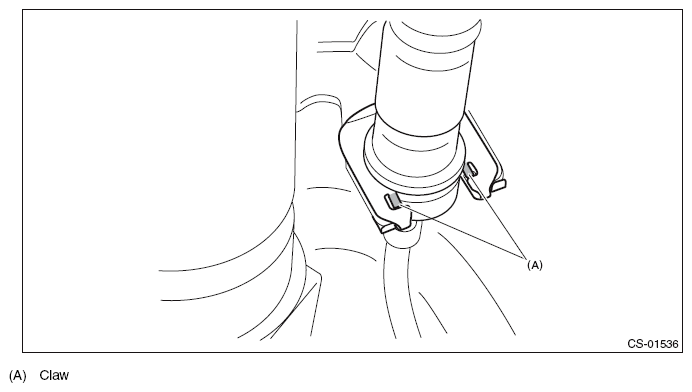

    Fig 5: Identifying Select Cable Clamp Claw
    G09487610Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the select cable from plate assembly.
