2015 Subaru XV Crosstrek BaseFACTORY OEM SERVICE PROCEDURE

Select Cable: Installation

  1. Position the select cable as shown in the figure, and install it to the plate assembly.
    CAUTION:
    • If the cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.
    • Do not forcibly turn the cable (wire side) to align the direction correctly.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

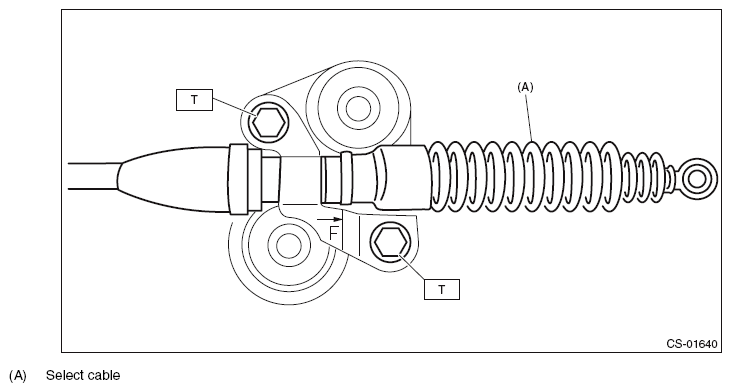

    Fig 1: Identifying Select Cable And Mounting Bolt
    G09487611Courtesy of SUBARU OF AMERICA, INC.
  2. Install the select cable to the shifter arm.
  3. Install the plate assembly to transmission.

    Tightening torque:

    T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

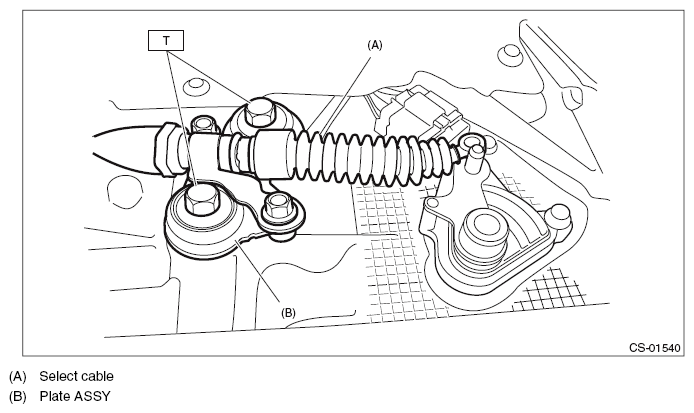

    Fig 2: Identifying Select Cable, Plate Assembly And Mounting Bolt
    G09487612Courtesy of SUBARU OF AMERICA, INC.
  4. Install the washer and snap pin to the shifter arm.

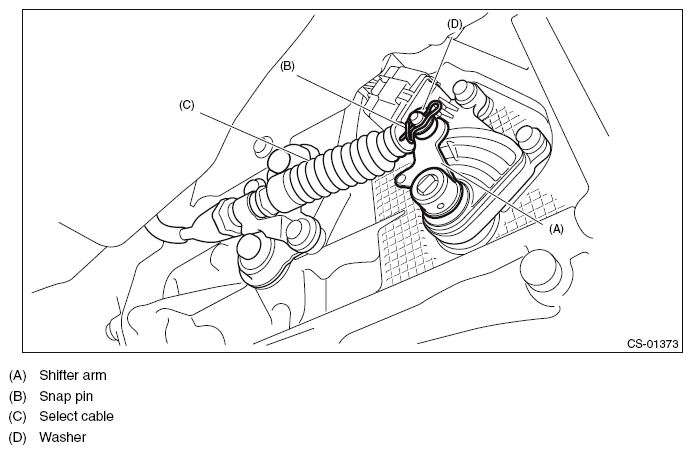

    Fig 3: Identifying Shifter Arm, Snap Pin, Select Cable And Washer
    G09487613Courtesy of SUBARU OF AMERICA, INC.
  5. Install new clamp paying attention to the installing direction.

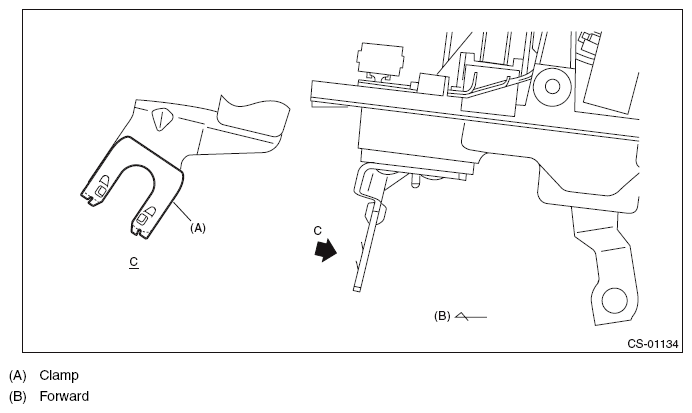

    Fig 4: Installing Select Cable Clamp
    G09487614Courtesy of SUBARU OF AMERICA, INC.
  6. Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.
    Fig 5: Inserting Tip Of Inner Cable Into Connector Hole Of Select Lever
    G08550615Courtesy of SUBARU OF AMERICA, INC.
  7. Shift the select lever to the "N" range, and then adjust the select cable position. < Ref. to ADJUSTMENT , Select Cable.>
  8. Install the center exhaust cover.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    Fig 6: Identifying Center Exhaust Cover
    G08550562Courtesy of SUBARU OF AMERICA, INC.
  9. Install the center exhaust pipe. < Ref. to INSTALLATION , Center Exhaust Pipe.>
  10. Lower the vehicle.
  11. Connect the battery ground terminal. < Ref. to BATTERY , NOTE, Note.>
