2015 Subaru XV Crosstrek BaseFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal: Removal
- Disconnect the ground cable from battery. < Ref. to
BATTERY
, NOTE, Note.>NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.

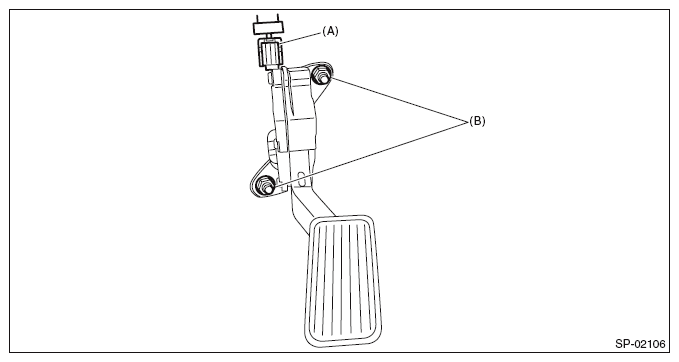

- Disconnect the connector (A).
- Remove the nut (B) securing accelerator pedal assembly, and remove the accelerator pedal assembly.
