2015 Subaru WRX STIFACTORY OEM SERVICE PROCEDURE

Drive Cycle F

DTC Item Condition
P0111 Intake Air Temperature Sensor Range/Performance Problem
  • At least 6 hours must have elapsed since the ignition switch was turned OFF under a completely warmed up condition.
  • For models with block heater, at least 6 hours must have elapsed without operating the block heater.

Diagnostic procedure:

  1. With the ignition switch ON (engine stopped), read the value in «Coolant Temp.» and «Intake Air Temp.». <Ref. to DISPLAY CURRENT ENGINE DATA (NORMAL MODE) , OPERATION, Subaru Select Monitor.>
  2. If the values from step 1) satisfy the following conditions, idle the engine for two minutes or more.

    Condition:

    Engine coolant temperature - Intake air temperature  ≤ 5°C (9°F)

    NOTE:
    • If the conditions are not satisfied, turn the ignition switch to OFF and wait until the parameters are satisfied.
    • Do not move the shift lever from neutral position during idling.
  3. Drive according to the drive pattern described below.

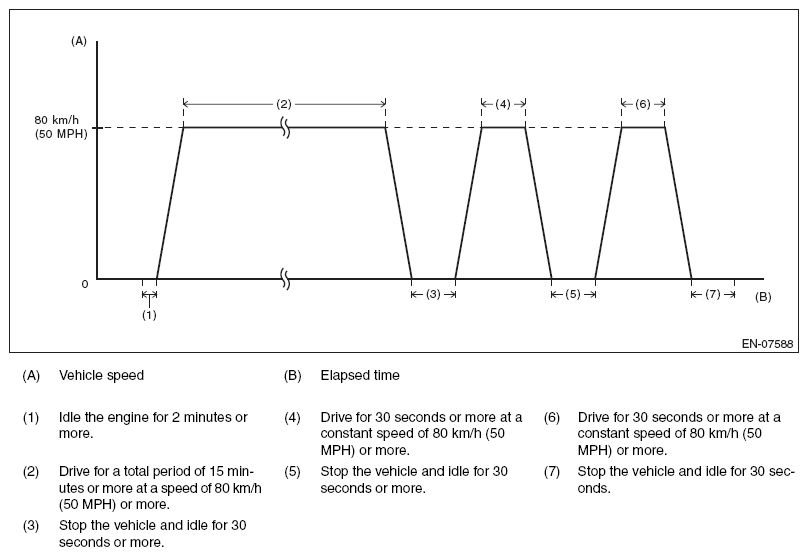

    Fig 1: Driving Pattern (Drive Cycle F)
    G10265788Courtesy of SUBARU OF AMERICA, INC.
