2015 Subaru WRX STIFACTORY OEM SERVICE PROCEDURE

Wastegate Control Solenoid Valve: Removal

Disconnect the ground cable from battery.
Remove the vacuum hose from clip (A), and remove the bolt (B) which secures the wastegate control solenoid valve.
Remove the bolts (C) which secure solenoid valve bracket onto intake manifold.

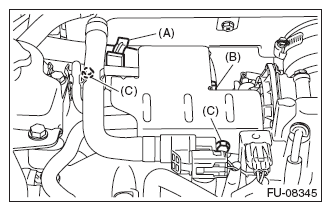

Fig 1: Identifying Vacuum Hose Clip And Wastegate Control Solenoid Valve Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from the wastegate control solenoid valve.
Disconnect the vacuum hose (B) and air control hose (C) from the wastegate control solenoid valve, and remove the wastegate control solenoid valve.

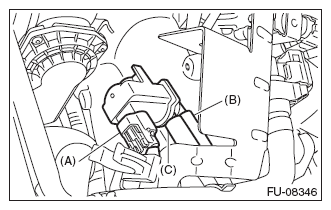

Fig 2: Identifying Wastegate Control Solenoid Valve Connector And Vacuum Hose

Courtesy of SUBARU OF AMERICA, INC.
