2015 Subaru WRX STIFACTORY OEM SERVICE PROCEDURE
Throttle Body: Removal
- Disconnect the ground cable from battery.
- Lift up the vehicle.
- Remove the under cover. <Ref. to REMOVAL , Front Under Cover.>
- Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. <Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.>
- Remove the intercooler. <Ref. to REMOVAL , Intercooler.>

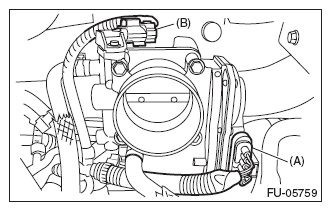

- Disconnect the connector (A) from the throttle position sensor, and the connector (B) from the manifold pressure sensor.

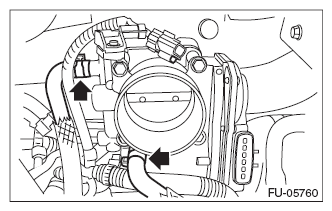

- Disconnect the engine coolant hose from throttle body.

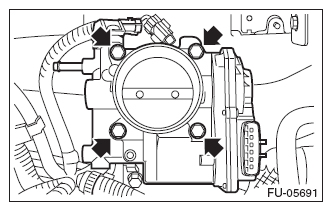

- Remove the throttle body from the intake manifold.
