2015 Subaru WRX STIFACTORY OEM SERVICE PROCEDURE

Pressure Regulator & Damper Assembly: Disassembly

  1. Remove the fuel pipe protector from the pressure regulator and damper assembly.

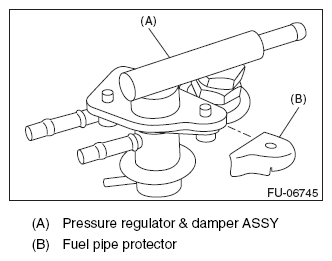

    Fig 1: Identifying Fuel Pipe Protector And Pressure Regulator
    G10264971Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the pulsation damper and fuel pipe gasket from the fuel holder assembly, and remove the pressure regulator from the fuel holder assembly.

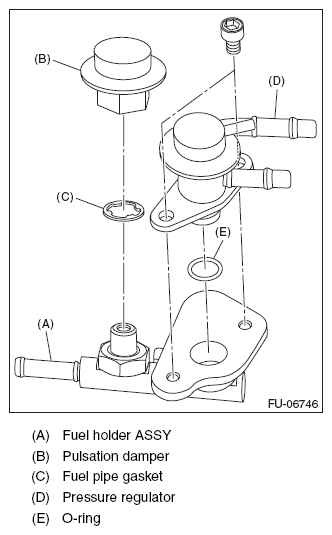

Fig 2: Identifying Pulsation Damper, O-Ring And Fuel Pipe Gasket
G10264972Courtesy of SUBARU OF AMERICA, INC.
