Front Oxygen (A/F) Sensor: Installation
- Before installing front oxygen (A/F) sensor, apply anti-seize compound only to the threaded portion of front oxygen (A/F) sensor to make the next removal easier.CAUTION: Never apply anti-seize compound to the protector of front oxygen (A/F) sensor.
Anti-seize compound:
NEVER-SEEZ NSN, JET LUBE SS-30 or equivalent
- Install the front oxygen (A/F) sensor.
Tightening torque:
30 N.m (3.1 kgf-m, 22.1 ft-lb)
- Install the under cover. <Ref. to INSTALLATION , Front Under Cover.>
- Lower the vehicle.

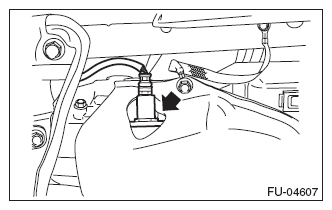

- Secure the front oxygen (A/F) sensor harness to the engine harness stay using the clips (A).
- Connect the connector to the front oxygen (A/F) sensor, and secure the return hose and front oxygen (A/F) sensor harness using the clip (A).
- Connect the battery ground terminal.
