2015 Subaru WRX STIFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor (Method With Oscilloscope)
- Prepare an oscilloscope.
- Remove the glove box. <Ref. to REMOVAL , Glove Box.>

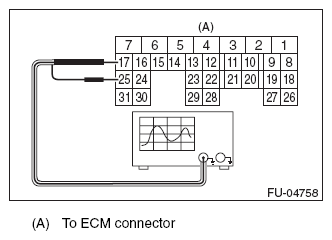

- Connect the probe to ECM connector.
Terminal No. Probe 17 + 25 - - Start the engine and let it idle.

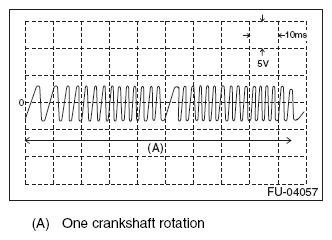

- Check the pattern is the same as the waveform and voltage shown below.
- After inspection, install the related parts in the reverse order of removal.
