2015 Subaru WRX STIFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor (Method With Oscilloscope)
- Prepare an oscilloscope.
- Remove the glove box. <Ref. to REMOVAL , Glove Box.>

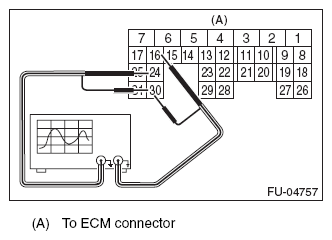

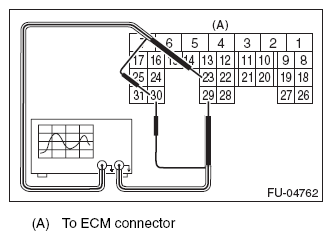

- Connect the probe to ECM connector.
- Intake camshaft position sensor
- Exhaust camshaft position sensor
Courtesy of SUBARU OF AMERICA, INC.
Camshaft position sensor Terminal No. Probe Intake RH 24 + LH 16 + Exhaust RH 23 + LH 29 + RH and LH 30 - - Start the engine and let it idle.

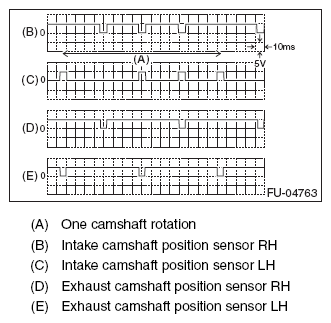

- Check the pattern is the same as the waveform and voltage shown below.
- After inspection, install the related parts in the reverse order of removal.
