Knock Sensor: Installation

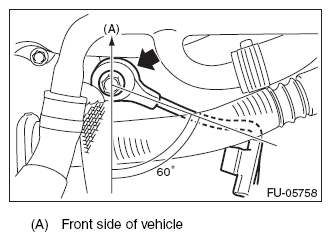

- Install the knock sensor to the cylinder block.NOTE: The portion of the knock sensor cord that is pulled out must be positioned at a 60° angle relative to the engine rear.
Tightening torque:
24 N.m (2.4 kgf-m, 17.7 ft-lb)
- Install the secondary air combination valve RH. <Ref. to SECONDARY AIR COMBINATION VALVE RH , INSTALLATION, Secondary Air Combination Valve.>
- Install the intake manifold. <Ref. to INSTALLATION , Intake Manifold.>
- Install the intercooler. <Ref. to INSTALLATION , Intercooler.>
- Connect the battery ground terminal.
