2015 Subaru WRX STI Launch EditionFACTORY OEM SERVICE PROCEDURE
Engine Control Module (ECM): Removal
- Disconnect the ground cable from battery.
- Remove the glove box. <Ref. to REMOVAL , Glove Box.>

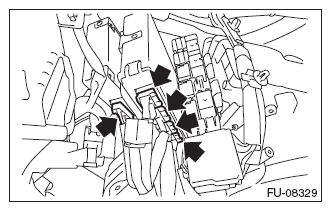

- Disconnect the connectors from the ECM and driver's control center differential control module.

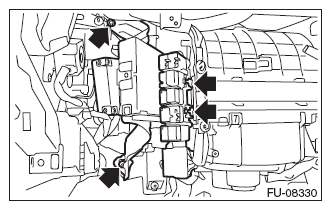

- Push down the claws, and remove the relay block.
- Remove the bolts and nuts, and remove the ECM.

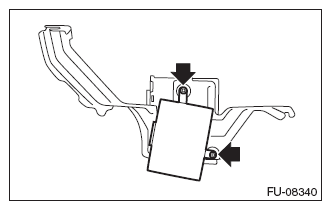

- Remove the driver's control center differential control module.
