STI Model
- Insert the gear shift lever from the bottom of the vehicle.NOTE: After inserting the rod and stay, temporarily put them onto transmission mount.
- Install the cushion rubber.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)

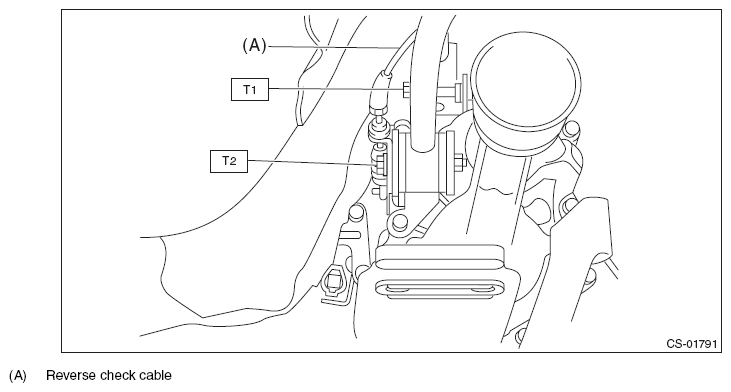

- Move the transmission to the right side of the vehicle, and install the joint COMPL and stay.
Tightening torque:
T1: 12 N.m (1.2 kgf-m, 8.9 ft-lb)
T2: 32 N.m (3.3 kgf-m, 23.6 ft-lb)
- Install the reverse check cable, washer and snap pin.NOTE: Pay attention to the installing direction of the snap ring.
